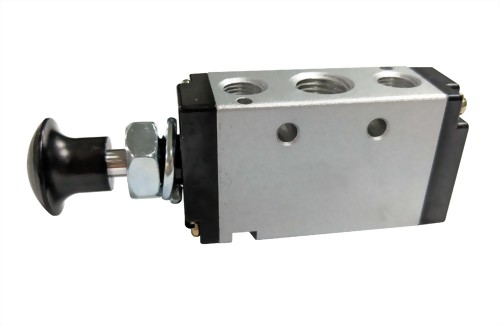

NH22 Hand-Pull Valve FEATURES : 1.Light Aluminum body, easy installation. 2.Max Pressure at 15Bar. 3.Tightened-nut to loose-proof. 4.Hand pull designed to avoid misoperation for safety. APPLICATION : 1.Semi-auto mechanical control 2.Pneumatic circuit control 3.Production line 4.Automobile industry SPECIFICATION : Part No. NH222 NH222-32 Body Material ADC-10 Medium Air Action Direct Hand Lever Operated Valve Type 5 Port 2 Way 3 Port 2 Way Port Size 1/4” (PT/NPT/G) Working Pressure 0 ~ 15Bar Flow 400 (L/min) at 2 Bar Working Temperature -10°C ~ 60°C

FEATURES : 1.IP rating: IP65 2.Voltage drop range within ± 10% 3.Working at zero pressure is available 4.DIN coil and Grommet can be chosen 5.Can be used as a switch for air, water and oil APPLICATION : 1.Mechanical engineering 2.Petrochemical power 3.Pneumatic tools SPECIFICATION :  Part no. NB222 NB303 NB404  Body Material Brass  Medium Air, Water, Oil  Operating Method Normally Closed Direct-Operated  Port Size 1/8" , 1/4" 3/8" 3/8" , 1/2"  Thread  PT , NPT , G  Working Pressure 0 ~ 1.0 Mpa / NB232: 2.0 MPa  Max Working Pressure 1.0 MPa  Working Temp -5°C ~ 80°C

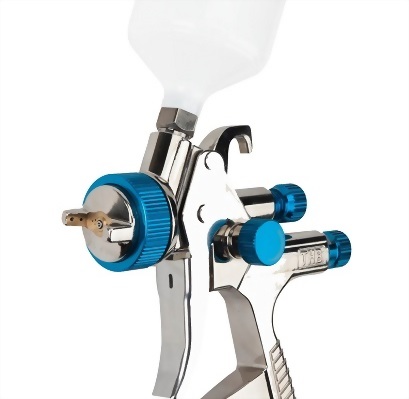

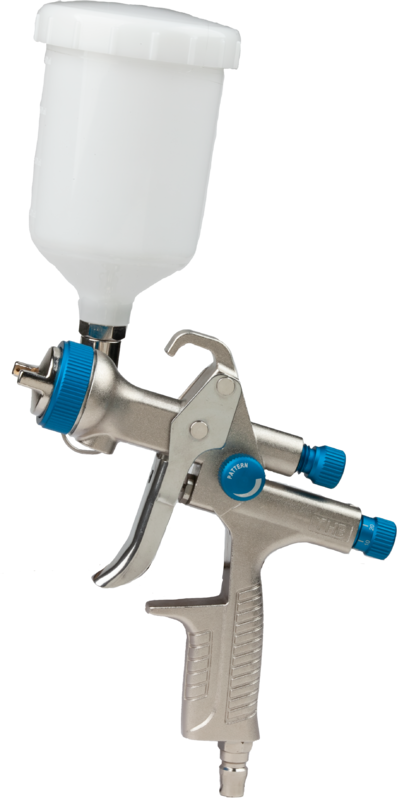

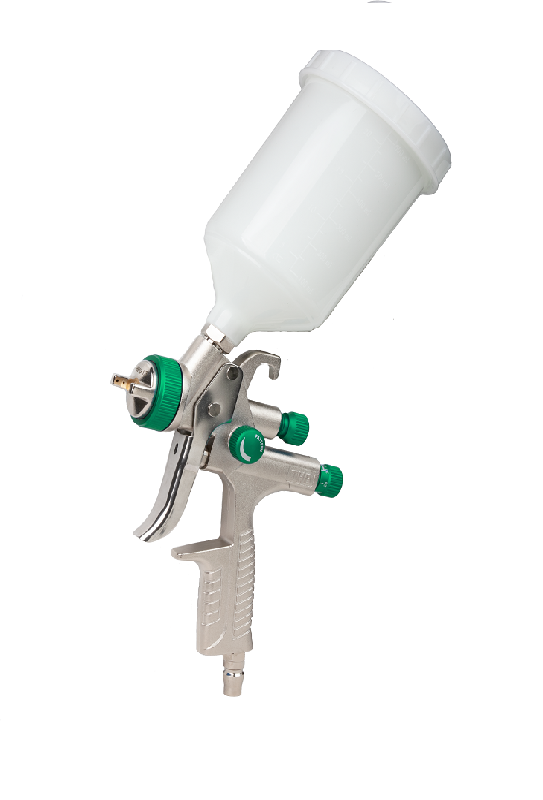

 Paint viscosity : 20 sec/NK-2 (22 sec/Ford-4) Fluid nozzle orifice (mm) 1 1.3 1.5 1.8 2 Atomizing air pressure (Bar) 2 2 2 2 2 Spray distance (mm) 200 200 200 200 200 Pattern width (mm) 280 300 300 320 320 Air consumption (l/min) 340 340 340 340 340 Paint consumption (ml/min) 125 170 200 240 28 FEATURES : 1.Aluminum body for light weight and durable and user-friendly 2.Built-in regulator for stabilizing output pressure and better atomization 3.Stainless trigger and nozzle , which is designed  for water-based paint 4.Trigger shields parts well to lessen dirty and wear and tear 5.Transparent cup with scale for checking paint easily APPLICATION : Coating / Sheet metal part painting for automobile & furniture /Wall painting SPECIFICATION : Part No. BS10 Air Inlet Pressure 43~145PSI/3~10Bar/0.3~1.0MPa Spray Pressure 7~36PSI/0.5~2.5Bar/0.05~0.25MPa Max Input Pressure 232PSI/16Bar/1.6MPa Body Material Aluminum alloy Air Inlet 1/4”  Fluid Inlet  3/8” G Capacity of Cup 600ml Paint  Supply Method Gravity

F52 Vacuum Filter FEATURES : 1. The negative pressure design can effectively filter the impurities and water      generated by the vacuum generator to prevent the system from being polluted 2. Steel guards offer good protection 3. Strong latching device to firm installation APPLICATION : 1. Vacuum Pump 2. Vacuum Chuck 3. Dust-free Room 4. Vacuum Packing Machine 5. Vacuum Drying Oven 6. Vacuum Sealer SPECIFICATION :  Part No. F522 F523 F524  Working Pressure Range -0.1~10Bar  Proof Input Pressure  15Bar (1.5Mpa/ 218PSI)  Body Material Zinc alloy  Port Size 1/4” 3/8” 1/2”  Filter Element 5μ  Operation Temperature Range -0~60°C   Medium Air

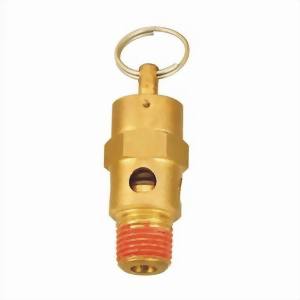

T112N SAFETY VALVE FOR MINI AIR COMPRESSOR FEATURES : • Open and relieve excess pressure from equipment. And to reclose and prevent the further release of fluid after normal conditions have been restored. • Applicable code: ASME SEC.VIII DIV.1 • Each valve has been tested at 90% of set pressure for seat tightness • Reference: ASME SECTIO VIII, DIV.1 UG-136 (d)(5) APPLICATION : Mini air compressor SPECIFICATION :  Part No. T112N-175 T112N-205 T112N-250  Material C3604 Brass  Port Size 1/4”   Set pressure (PSI) 175 205 250  Burst pressure ±3% (PSI) ASME 170~180 199~211 242.5~257.5  Seal pressure 90% (PSI)  ASME 157.5 184.5 225  Air Flow (SCFM) 55 64 77  Temp Range -40~93.3°C
