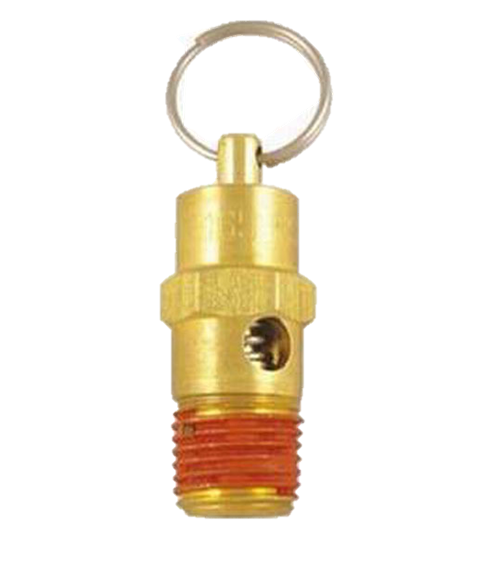

T112N SAFETY VALVE FOR MINI AIR COMPRESSOR

FEATURES :

• Open and relieve excess pressure from equipment. And to reclose and prevent the further release of fluid after normal conditions have been restored.

• Applicable code: ASME SEC.VIII DIV.1

• Each valve has been tested at 90% of set pressure for seat tightness

• Reference: ASME SECTIO VIII, DIV.1 UG-136 (d)(5)

APPLICATION :

Mini air compressor

SPECIFICATION :

Part No.	T112N-175	T112N-205	T112N-250
Material	C3604 Brass
Port Size	1/4”
Set pressure (PSI)	175	205	250
Burst pressure ±3% (PSI) ASME	170~180	199~211	242.5~257.5
Seal pressure 90% (PSI)  ASME	157.5	184.5	225
Air Flow (SCFM)	55	64	77
Temp Range	-40~93.3°C
