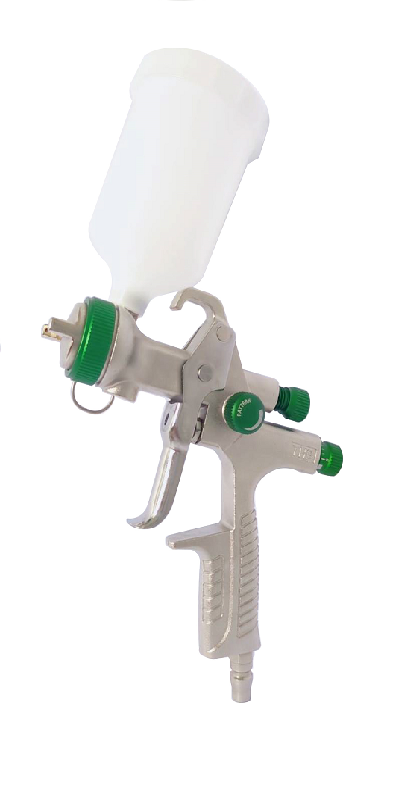

Gravity Flow Cup Spray Gun / HVLP
Model :
BS31 / BS31A / BS31B
FEATURES:
1.Aluminum body for light weight and durable and user-friendly
2.Built-in regulator for stabilizing output pressure and better atomization
3.Stainless trigger and nozzle , which is designed for water-based paint(Material for spray cap is brass)
4.Trigger shields parts well to lessen dirty and wear and tear
Coating / Sheet metal part painting for automobile & furniture /Wall painting
1.Aluminum body for light weight and durable and user-friendly
2.Built-in regulator for stabilizing output pressure and better atomization
3.Stainless trigger and nozzle , which is designed for water-based paint(Material for spray cap is brass)
4.Trigger shields parts well to lessen dirty and wear and tear
5.Transparent cup with scale for checking paint easily
Coating / Sheet metal part painting for automobile & furniture /Wall painting
PECIFICATION:
|
Part No. |
BS31 | BS31A | BS31B |
|
Air Inlet Pressure |
57~145PSI/4~10Bar/0.4~1.0MPa |
||
|
Spray Pressure |
6~11PSI/0.4~0.8Bar/0.04~0.08MPa |
||
|
Max Input Pressure |
232PSI/16Bar/1.6MPa |
||
|
Body Material |
Aluminum alloy |
||
|
Air Inlet |
1/4" | ||
|
Fluid Inlet |
3/8"G | ||
|
Paint Supply Method |
Gravity | ||
|
Capacity of Cup |
400 ml | 600 ml | X |
| Fluid nozzle orifice (mm) | 1 | 1.3 | 1.5 | 1.8 | 2 |
|
| Atomizing air pressure (Bar) | 2 | 2 | 2 | 2 | 2 |
|
| Spray distance (mm) | 200 | 200 | 200 | 200 | 200 | |
| Pattern width (mm) | 300 | 300 | 300 | 300 | 300 |
|
| Air consumption (l/min) | 340 | 340 | 340 | 340 | 340 |
|
| Paint consumption (ml/min) | 125 | 150 | 180 | 210 | 240 |
Paint viscosity : 20 sec/NK-2 (22 sec/Ford-4)
