New Products : F52 Vacuum Filter



F52 Vacuum Filter

FEATURES :

1. The negative pressure design can effectively filter the impurities and water

    generated by the vacuum generator to prevent the system from being polluted

2. Steel guards offer good protection

3. Strong latching device to firm installation

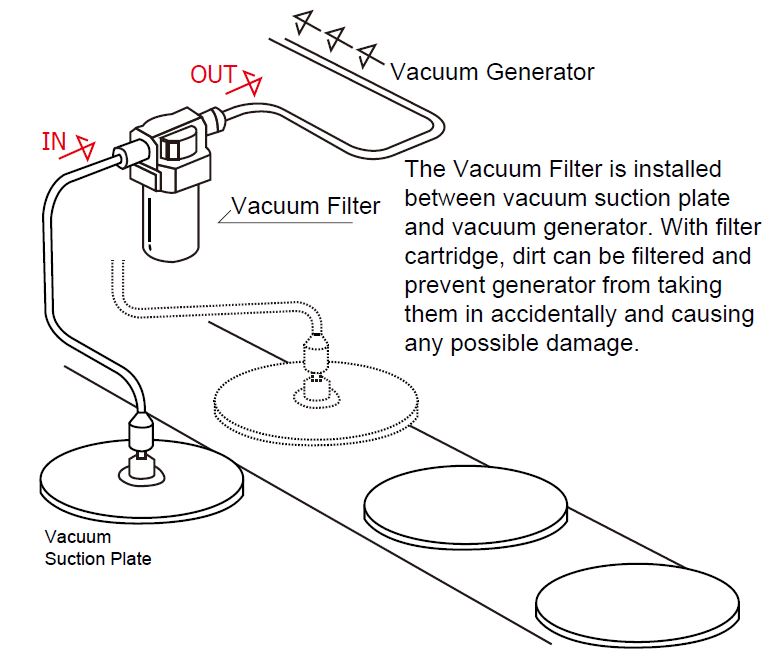

APPLICATION :

1. Vacuum Pump

2. Vacuum Chuck

3. Dust-free Room

4. Vacuum Packing Machine

5. Vacuum Drying Oven

6. Vacuum Sealer


SPECIFICATION :

 Part No. F522 F523 F524
 Working Pressure Range -0.1~10Bar
 Proof Input Pressure  15Bar (1.5Mpa/ 218PSI)
 Body Material Zinc alloy
 Port Size 1/4” 3/8” 1/2”
 Filter Element
 Operation Temperature Range -0~60°C
 Medium Air
