2 PORT 2 WAY SOLENOID VALVE
Features:
1. IP rating: IP 65
2. Voltage drop range within ±10%
3. Working at zero pressure is available
4. DIN coil and Grommet can be chosen
5. Can be used as a switch for both air, water and oil
Application:
1.Pneumatic tools
2.Petrochemical power
3.Mechanical engineering
Specification:

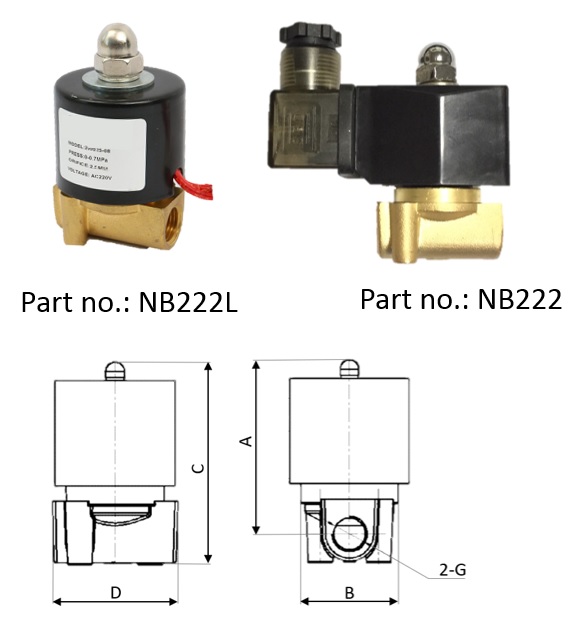

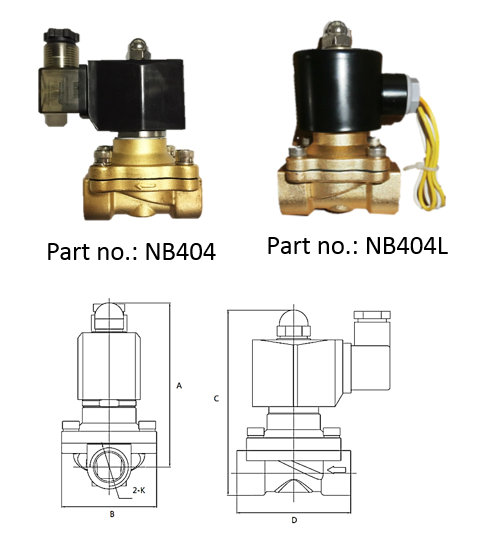

| Part no. | NB222 | NB232 | NB404 |
| Medium | Air, Water, Oil | ||
| Working Pressure(BAR) | 7 | 20 | Air :10 , Water & Oil : 7 |
| Max Pressure(BAR) | 10 | 35 | 10 |
| Valve Type | Normally Closed | ||
| Operating Method | Direct action | ||
| Orifice(mm) | 2.5 | 1.2 | 16 |
| CV Value | 0.23 | 0.05 | 4.8 |
| Port Size | 1/4" | 1/4" | 1/2" |
| Medium Viscosity | Under 20CST | ||
| Ambient Temp(°C) | -5~80 | ||
| Voltage(V) | AC110 、 AC220 、DC24 | ||
| Voltage Range | 90~110% | ||
| Body Material | Brass | ||
