New Products : NYLON 6 RECOIL AIR TUBE

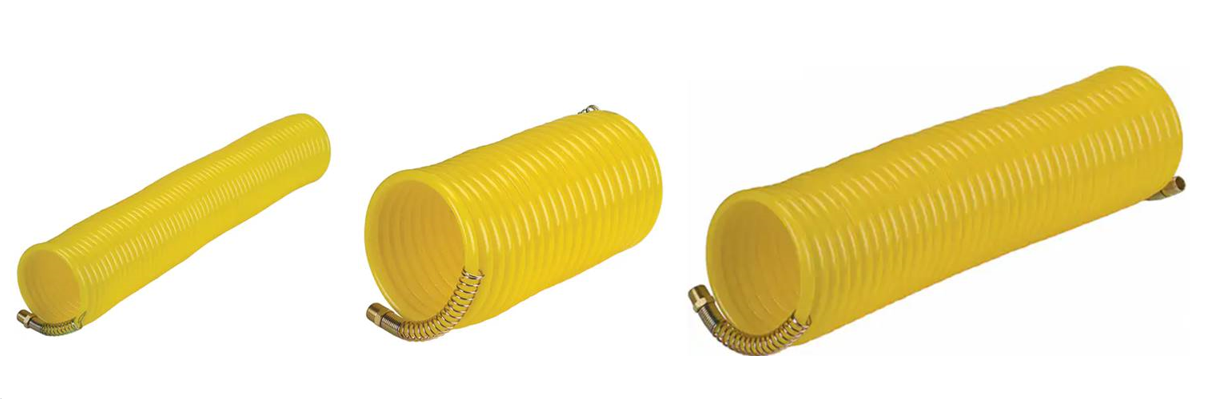

NYLON 6 RECOIL AIR TUBE
Features:
1. Light weight and permanently coiled.
2. Longer service life-span.
3. Weatherability - resists abrasion and moisture absorption, endurable a wide range of working temperature at -40~80°C
4. Each assembly is supplied with durable compression fittings, tube inserts and hose ferrules.
5. Meet the international norms: ISO 14743
Specifications:
| Part No. | HNR516250 / HNR716375 |
| Color | YL / RD |
| Body Material | NYLON 6 |
| Medium | Air / Fluid / Oil |
| Size | 1/4” (ID6.3*OD7.8mm) |
| 3/8” (ID9.5*OD11.3mm) | |
| Length (FT) | 25/50 |
| Working Pressure | 200 PSI |
| Burst Pressure | 800 PSI |
| Temperature Range | -40~80°C |
*CUSTOMIZED PACKING/LENGTH WITH DIFFERENT FITTINGS ARE ACCEPTABLE.
2022-04-19
