New Products : Stainless Steel Quick Coupler

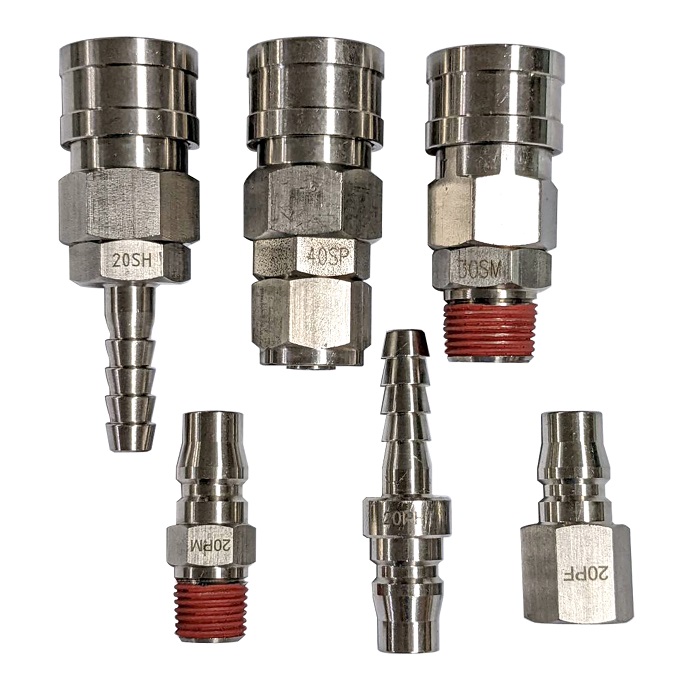

Stainless Steel Quick Coupler

FEATURES :

1.   Stainless material can apply with gas, oil and water.

       Acid and alkali resistance.

2.   Six stainless steel locking ball designed.

3.   Certificate of RoHS/Reach compliance.

4.   Tested 100,000 times.

      Connection is accurate and reliable.


APPLICATION :

1. Manufacturing/Food processing/

    Chemical Industrial/Medical Industry/Car Coating

2. Air piping/Air Pressure Equipment


SPECIFICATION :

  Materials SUS304
  Thread PT
  Oring Viton
  Working Pressure 218PSI (15Bar/1.5MPa)
  Maximum Pressure 290PSI (20Bar/2MPa)
  Flow Rate 6bar : (1000 l/m 以上)
  Temperature Range -20°C ~ +180°C
  Port Size 1/4“ (20Type) 3/8” (30Type) 1/2" (40Type)


2022-04-29
