New Products : Safety Push Button Coupler

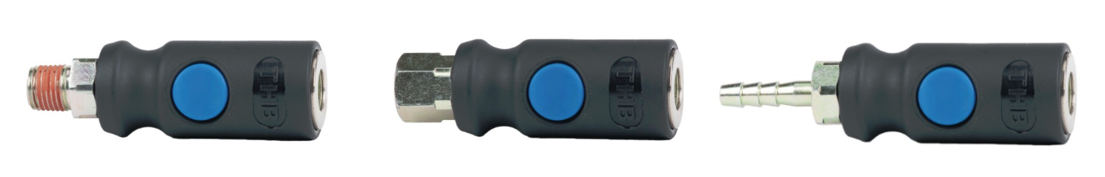

Safety Push Button Coupler

FEATURES :

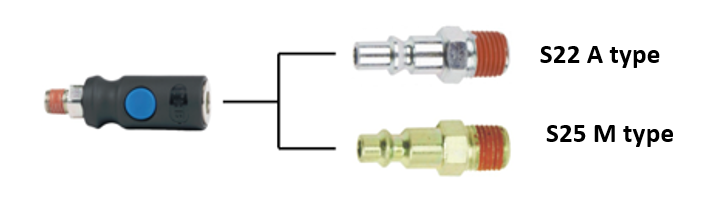

1. Compatible with A-type and M-type plug

2. Maximum pressure can reach 20 Bar

3. Convenient and safe connection design

4. Certificate of RoHS compliance

5. Life testing of 100,000 times


APPLICATION :

 Pneumatic tools, Air piping, Air pressure equipment

SPECIFICATION :

 Part No. S20P SERIES
 Working Pressure 218PSI (15Bar/ 1.5Mpa)
 Material Plastic (PA6+30%GF) + Steel
 Body size  1/4”
 Thread size 1/4” 3/8” NPT
 Temp Range -20~+80°c
 Flow rate 58 CFM (Inlet 10bar)


2021-10-08
