New Products : Heavy Duty Air Filter/Dryer (1.5"FILTER & 2"FILTER)
F160 & FM160 - Heavy Duty Air Filter/Dryer
F160- 1.5"FILTER & 2"FILTER
FM160- 1.5" & 2" Air Clean / Dryer
Feature:
1. Aluminum alloy body: light weight and better corrosion resistance
2. High air flow and low pressure drop

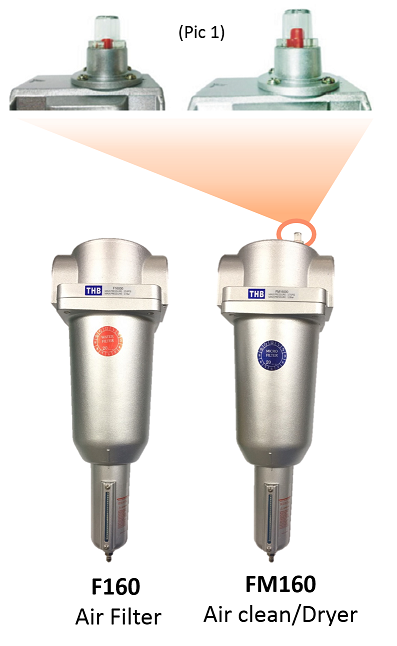

3. Indicator (FM160): red indicator will rise when filter element
needs to be changed (pic 1)
4. User can check the water level from ullage scale
5. No steel material used and no rust will happen
6. F160: ISO 8573 1:2010 [5:7:
7. FM160: ISO 8573 1:2010 [1:7:2]

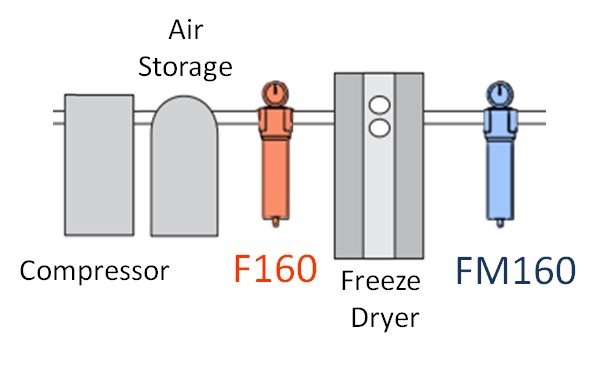

Application:
Specification:
Part NO.
F160-14
F160-20
F160-14A
F160-20A
FM160-14
FM160-20
FM160-14A
FM160-20A
Medium
Air
Material
Aluminum
Port Size
1.5"
2"
1.5"
2"
1.5"
2"
1.5"
2"
Thread
PT / NPT
/ G
Working Pressure
225PSI / 15.5Bar
30~175PSI / 2~12BAR
225PSI / 15.5Bar
30~175PSI / 2~12BAR
Working Temperature
5~60°C
Filter Element
5μ
0.01μ
Drain Valve
Manual
Auto
Manual
Auto
Drain Capacity
450ml
30ml
450ml
30ml
Flow(
L/Min)
9000
14000
9000
14000
12000
INPUT 7BAR, PRESSURE DROP 0.2BAR
RATED FLOW (MAX.)
BLOCKING DISPLAY STICK
