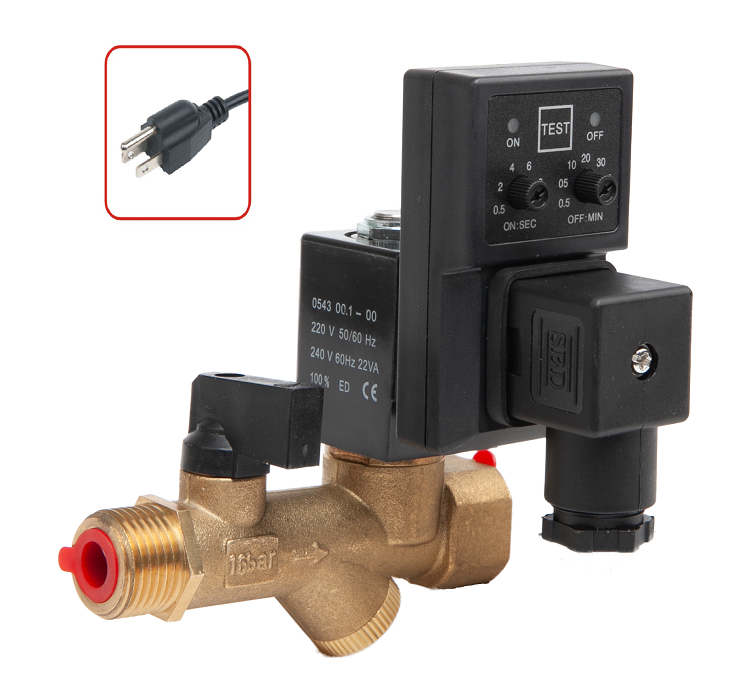

D90 Automatic Drain Control Water Valve

FEATURES :

1. IP Level: IP65

2. Auto draining with the timing function to stabilize the air storage in the compressor

3. No need to connect another filter.

APPLICATION :

Large-size Air Compressor

SPECIFICATION :

Part no.	D904
Valve Type	2 Port 2 Way Direct Action
Inlet Port Size	1/2” Male Thread、1/4“Female Thread
Outlet Port Size	1/2” Female Thread
Switching Time	Turn On 0.5~10 Second
	Turn Of 0.5~45 Minute
Working Pressure	16 Bar (1.6MPa / 232 PSI)
Timer Mode	Mechanical Knob
Operating Temperature	-20°C~60°C
Body Material	Brass
Orifice(mm)	3.5mm
Class protection	IP65-EN60529
Voltage(V)	AC110 、 AC220
Filter Element	60μ
