New Products : Desiccant Filter

Desiccant Filter



SPECIFICATION:

Part No.

LM262

 Medium

Air

 Port Size

Female thread

1/4''(NPS)

Male thread

1/4'' PT

 Pressure Max.

Psi

145

Bar

10

Mpa

1

 Operation Temperature Range

5~60

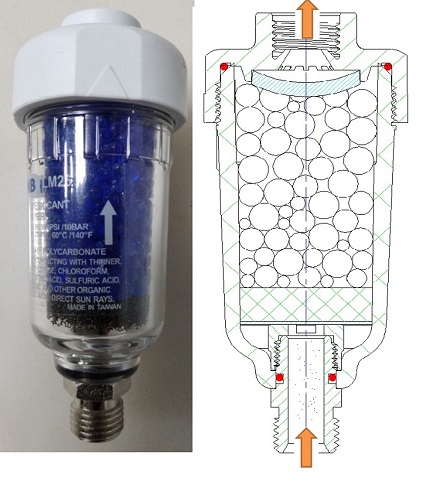

FEATURES:

1.100μ filter element:Remove oil, condensed water and particles *

2.Big capacity (20g) of non-poisonous and reusable desiccant beads

3.Connector: good air tightness and fit the most popular interchanges

4.Desiccant beads change color from blue to pink when they need to

be changed or reactivated.

* Highly recommend use coalescing filter/desiccant dryer (FRL /FML series)

 before LM262 to reach the best performance



CONNECTOR:

1. Rotatable

2. Fit the most popular interchanges

3. Good air tightness without O-ring or glue


APPLICATION:

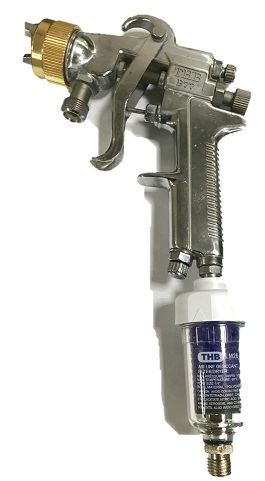

Paint Spray Gun, Control systems,

Sandblast, Fluids, Air condition systems.





2019-11-22
