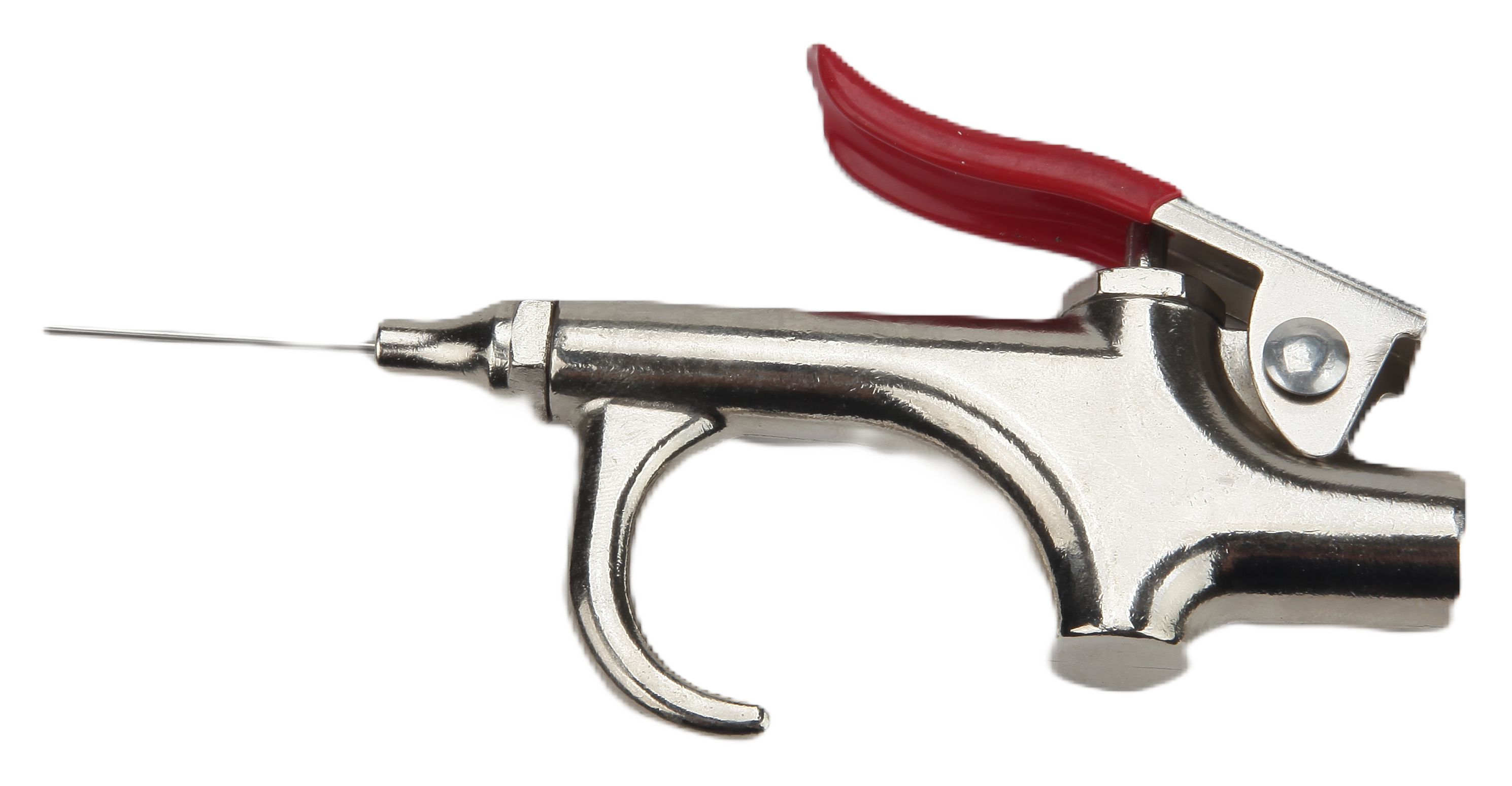

PISTOL TYPE LEVER AIR BLOWER
THB-AIR TOOLS
AIR BLOWER
AIR TOOLS - Air Blow Gun / Air Blower / Hava Tabancalari / Hava Tabancasi / Blo-gun / Pistol de aire / Pistola de ar / Ausblaspistole / блов гун / Pistole di soffiaggio / Pistole di soffiaggio / Blæsepistoler / Luft pistoler / تهب بندقية الغبار / ضربة بندقية / ضربة المسدس / エアーダスターガン / エアーブロワガン / エアーガン / 空氣吹氣槍 / 吹塵槍 / 氣動除塵槍/ 風槍 / 空氣噴槍
SPECIFICATION:
Part No.
Air Inlet
Nozzle Length(CM)
Max Pressure
B08
1/4" (PT,NPT,G)
With different type nozzle
200PSI (14Bar/1.4MPa)
B08-60
60 CM (23.6")
B08-120
120 CM (47")
B08-12
12 CM (4.7")
B08-28A
ψ0.040”x15/16”(ψ1.0x24mm)
B08-29A
ψ0.050”x1-3/16”(ψ1.26x30mm)
B08-30A
ψ0.072”x1-3/4”(ψ1.8x45mm)
B08-31A
ψ0.095”x2-15/32”(ψ2.4*63mm)
B08-32A
ψ0.134”x2-3/4”(ψ3.4*70mm)
FEATURES:
1. Various tips and extensions provide diversified functions.
2. Complete nozzle range for more options.
3. Meets or exceeds OSHA regulations.
NOZZLE:
B0813 - Inflation Needle
B0814 - Safety Nozzle
B0820 - Tapered Inflator
B0822-AS1 - Rubber Tip
B0821 - Adapters
B0828-AS1 - Needle Tip Φ1.00*24mm (Φ0.040" * 15/16")
B0829-AS1 - Needle Tip Φ1.26*30mm (Φ0.050" * 1-3/16" )
B0830-AS1 - Needle Tip Φ1.80*45mm (Φ0.072" * 1-3/4" )
B0831-AS1 - Needle Tip Φ2.40*63mm (Φ0.095" * 2-15/32" )
B0832-AS1 - Needle Tip Φ3.40*70mm (Φ0.134" * 2-3/4" )
FLOW METER :
B08 (no nozzle)
B08+B0814 (Safety Nozzle)
B08+B0822 (Rubber Tip)
B08+B0813 (Inflation Needle)
B08+B0820 (Tapered Inflator)
B08+B0828-AS1-Needle Tip
