THB-CYLINDER

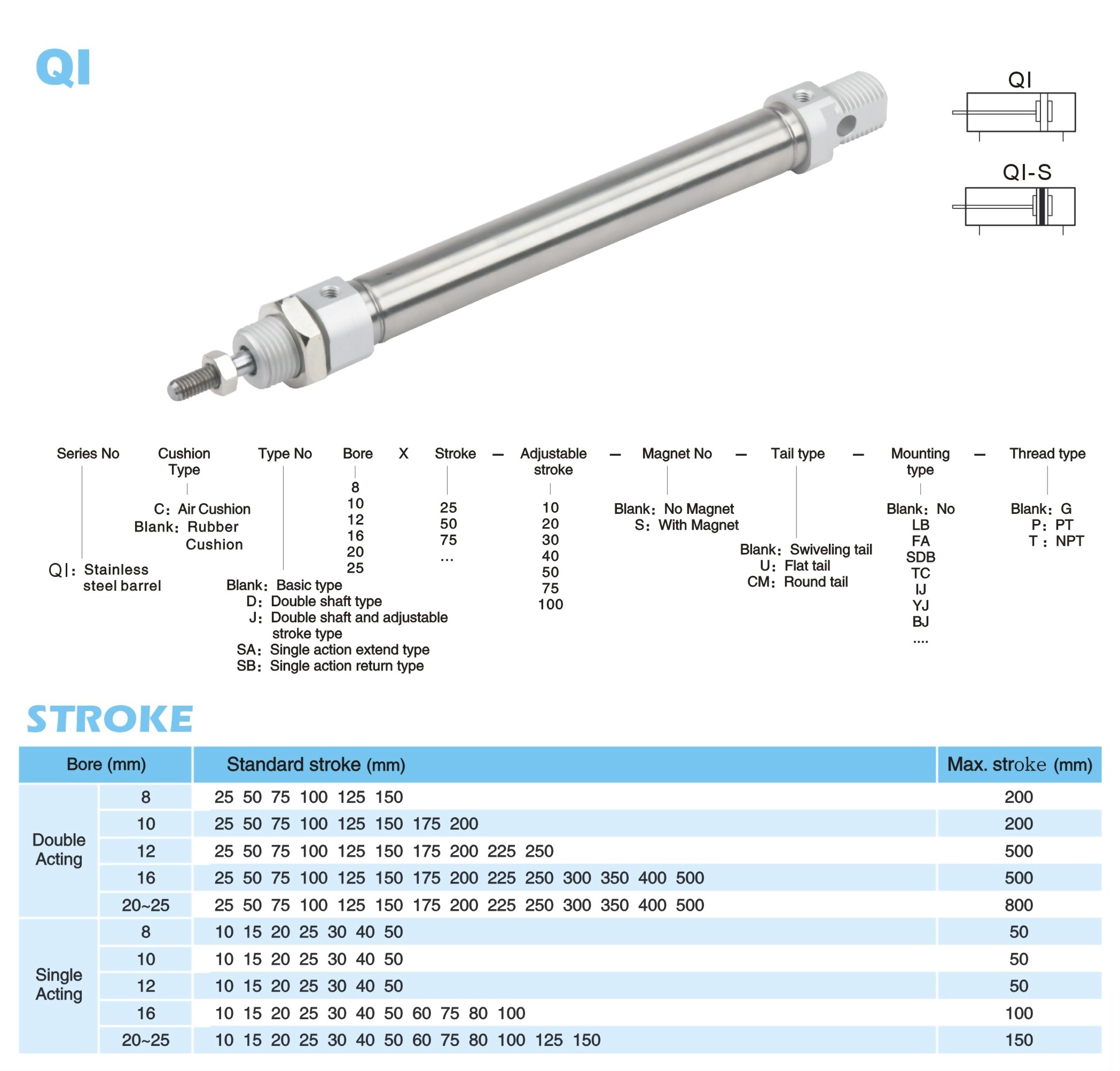

QI Series ISO 6432 Mini Cylinder

SPECIFICATION

 Bore Size (mm) 8 10 12 16 20 25
 Acting type Double Acting / Single Acting
 Working medium Clean Air (40μm filteration)
 Working pressure PSI 14.5~100            29~100 14.5~145     29~145
Bar    1~7                   2~7    1~10         2~10
Mpa 0.1~0.7             0.2~0.7 0.1~1.0      0.2~1.0
 (Double Acting )  (Single Acting)  (Double Acting ) (Single Acting)
 Guaranteed pressue 215PSI / 15Bar / 1.5Mpa
 Working temperature -20~80 / -5~176 (No freezing)
 Speed range (mm/s) 50~800
 Cushion type Bumper Bumper(standard) / Air cushion (Adjustable cushion)

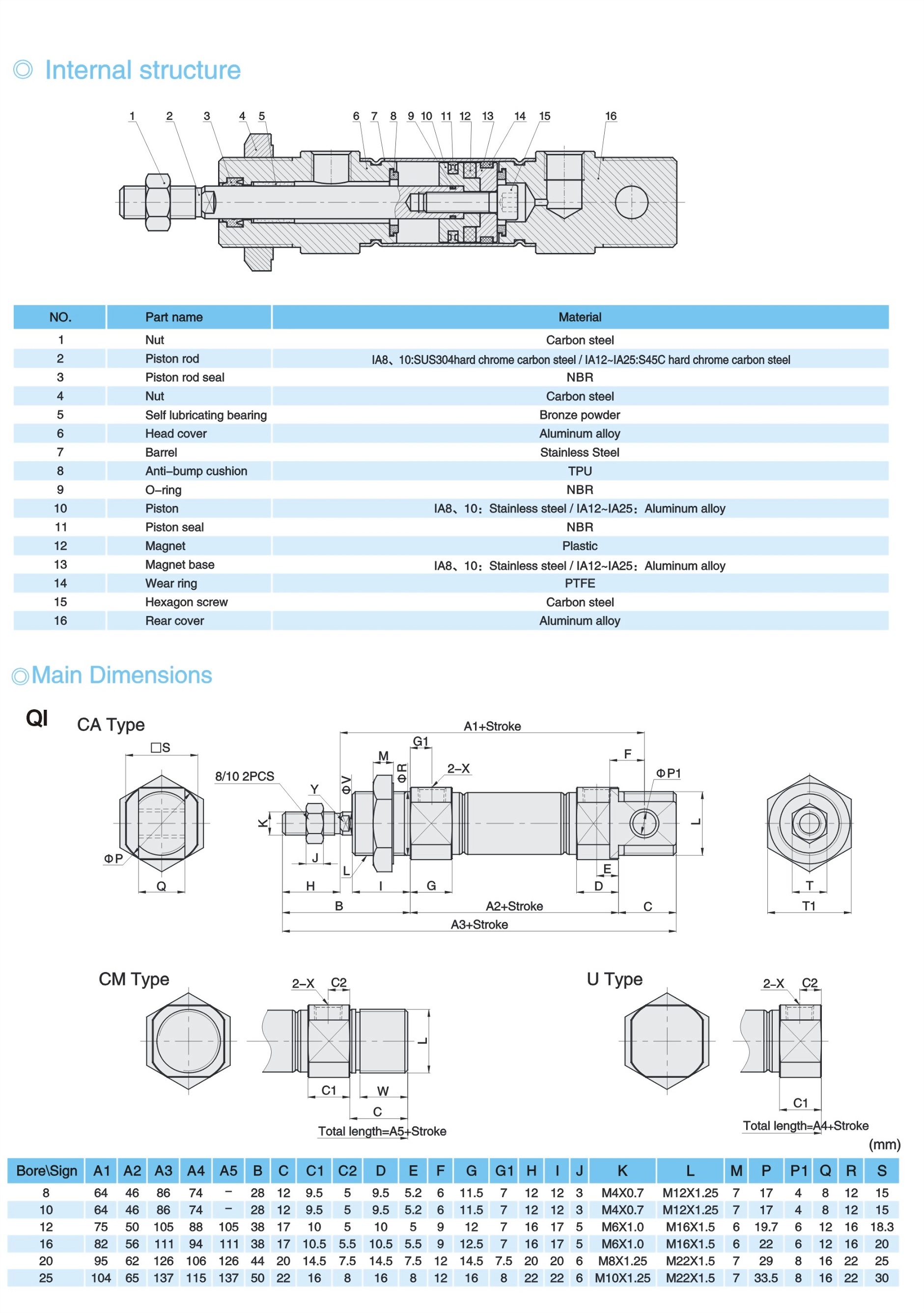

 Barrel material Stainless steel

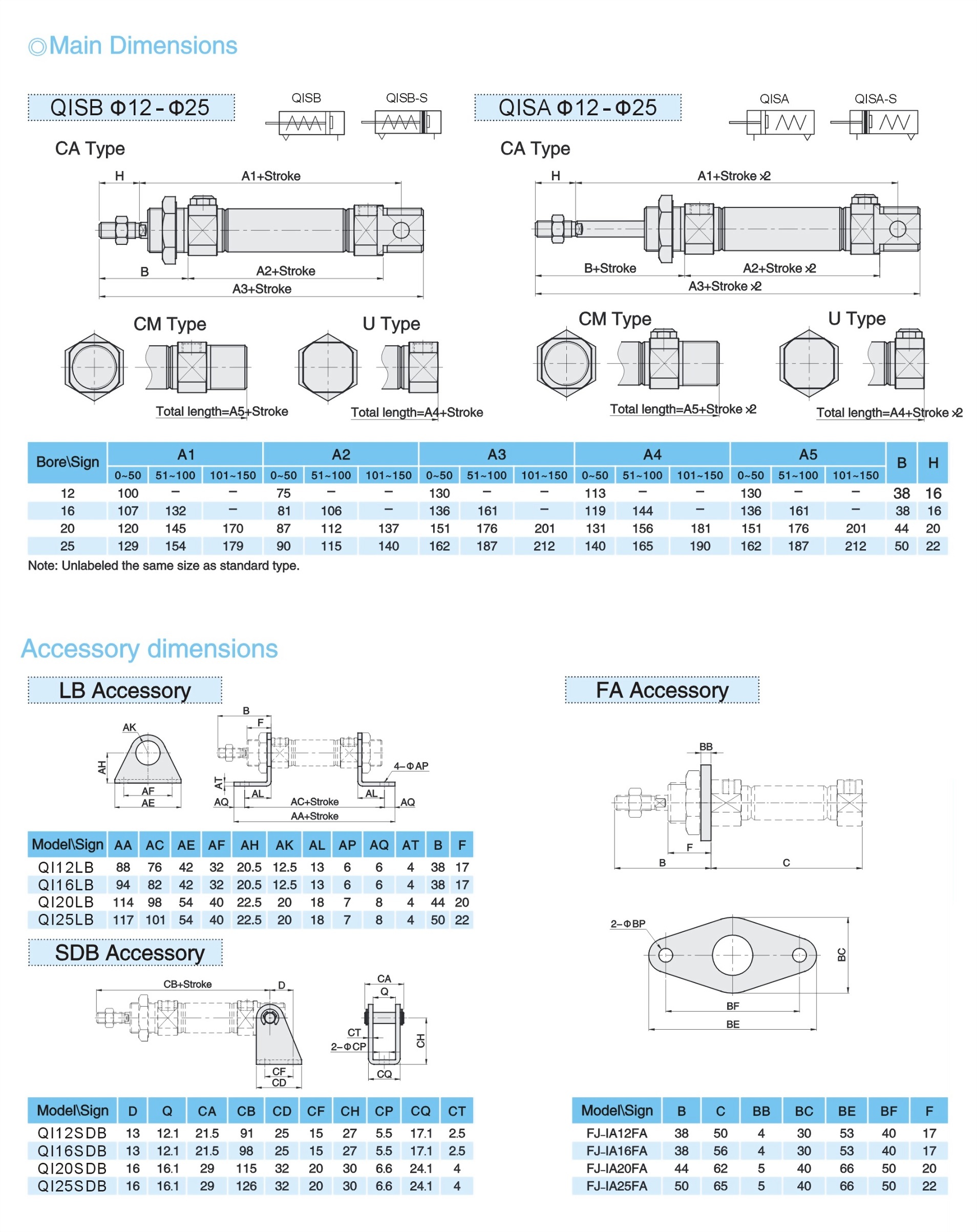

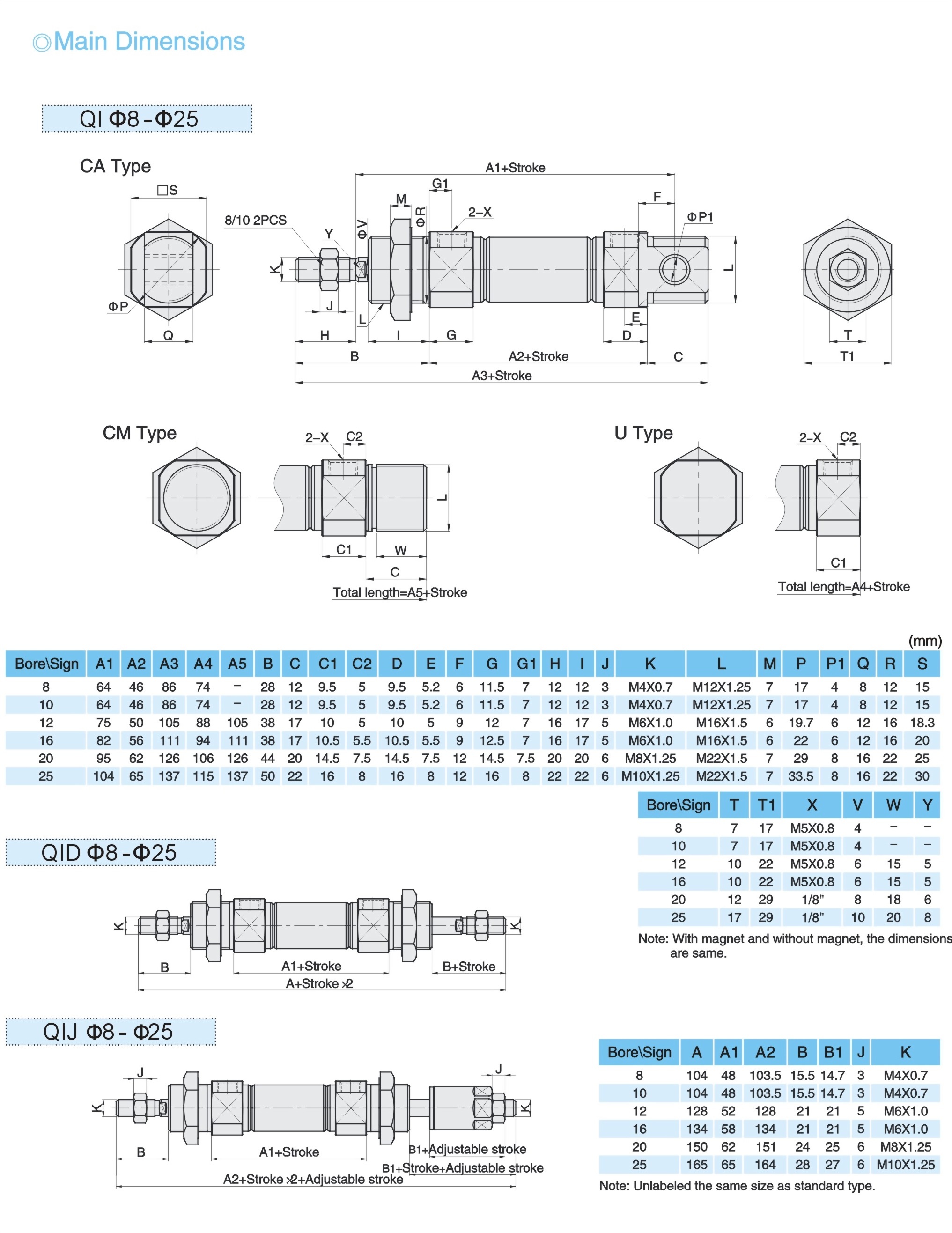

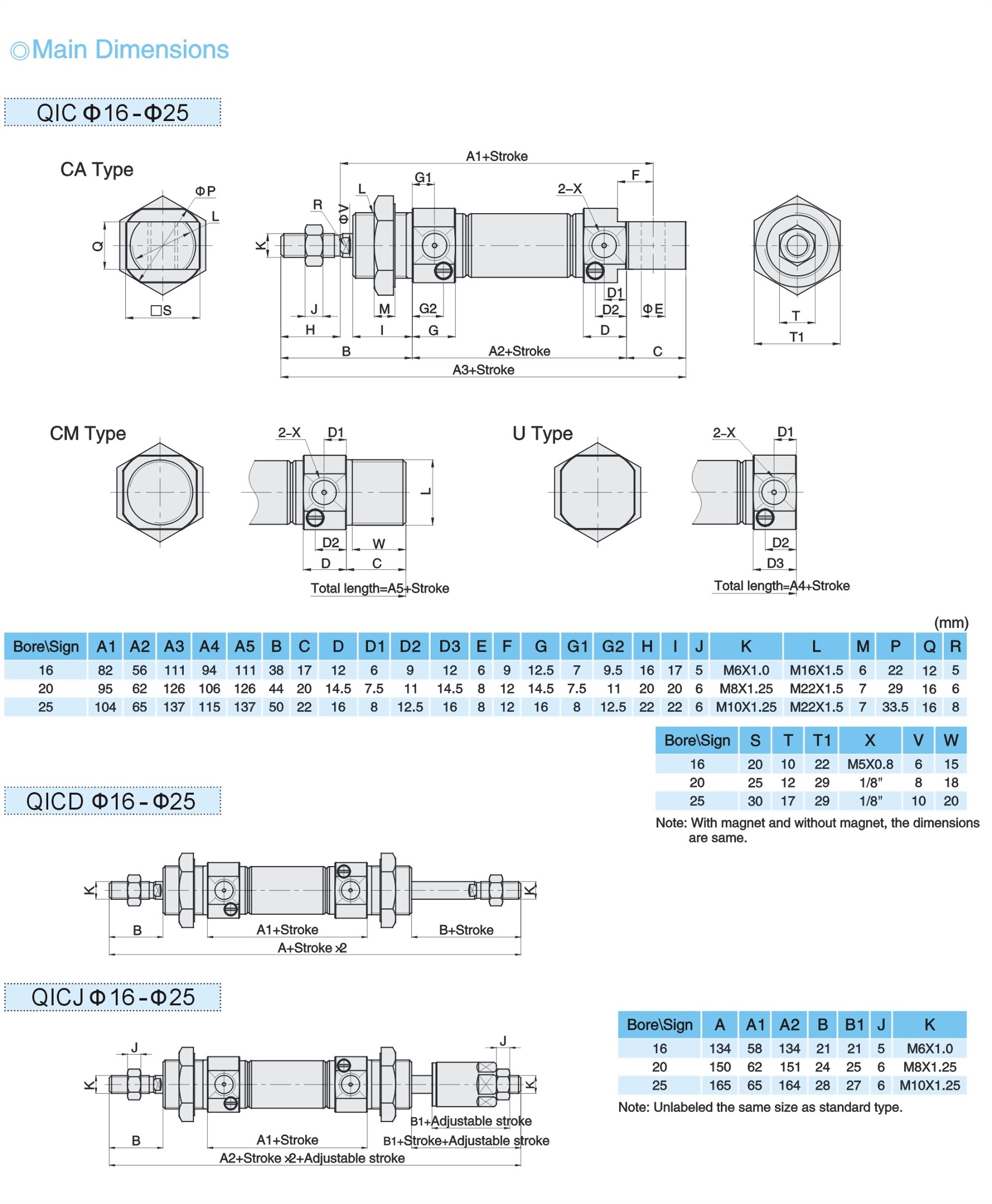

 Mounting type LB FA SDB
 Port size M5 x 0.8 G1/8*
* NPT、PT port size is optional.
