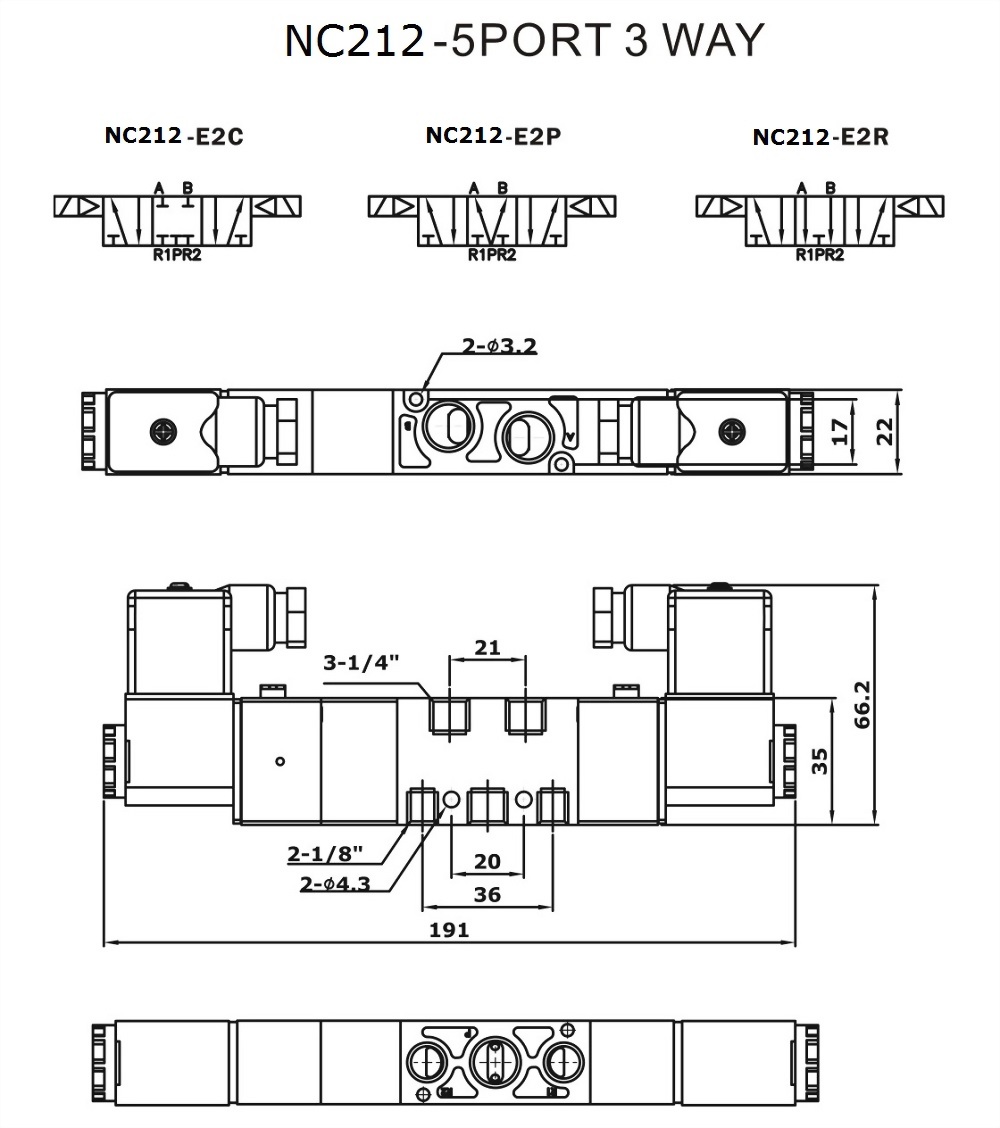

1/4"-5 PORTS 3 WAYS (DOUBLE) SOLENOID VALVE
Model :
NC212 (E2)
THB-SOLENOID VALVE
5 PORT 3 WAY, DOUBLE COIL
雙線圈五口三位電磁閥
Solenoid Valve / Elektrisch und pneumatisch betätigte Wegeventile / Соленоидный клапан / Valvole di controllo direzione ad azionamento elettrico e pneumatico / Distributeurs à commande électrique et pneumatique / Solenoid valve / Magnetventil / Solenoid valfi / Selenoid vana / ソレノイドバルブ / ソレノイド弁 / 電磁弁（でんじべん） / صمام الملف اللولبي / 電磁閥
SPECIFICATION:
| Part No. | NC212(E2) | NC313(E2) | |||
| Medium | Air | ||||
| Port Size | 1/4" 3/8" PT,NPT,G | ||||
| Coil | Double | ||||
| Working Pressure | 29 ~145 PSI (2~10Bar/0.2~1MPa) | ||||
| Ambient Temp | -5 ~ 60 ℃ (No freezing) | ||||
| Flow (L/min) | 2000 | 3600 | |||
| Response Time | 0.05s | 0.05s | |||
| Circulation Volume (Cv) |
E2C : 0.8 / E2P : 1.13 / E2R : 1.03 |
CV=2.5 | |||
| Insulation Class | F | ||||
| Protection Class | IP65 | ||||
| Voltage | DC | 12V | 24V | 12V | 24V |
| AC | 110V | 220V | 110V | 220V | |
＊ Meet The International Norms : JIS B 8375
Order Information
| NC | 21 | 2- | AC110 | E2C | L |
| Solenoid Valve | Body size | Port Size | Voltage | Solenoid |
|
| 5 Port 3 Ways | 21 – 1/4” | 2 – 1/4” | AC110 / AC220 | E2C : Double Closed Center |
Flying Leads |
| 31 – 3/8” | 3 – 3/8” | DC12 / DC24 | E2P : Double Pressurized Center |
X: DIN TYPE |
|
|
E2R : Double Exhaust Center |
(DIN 43650B) |
