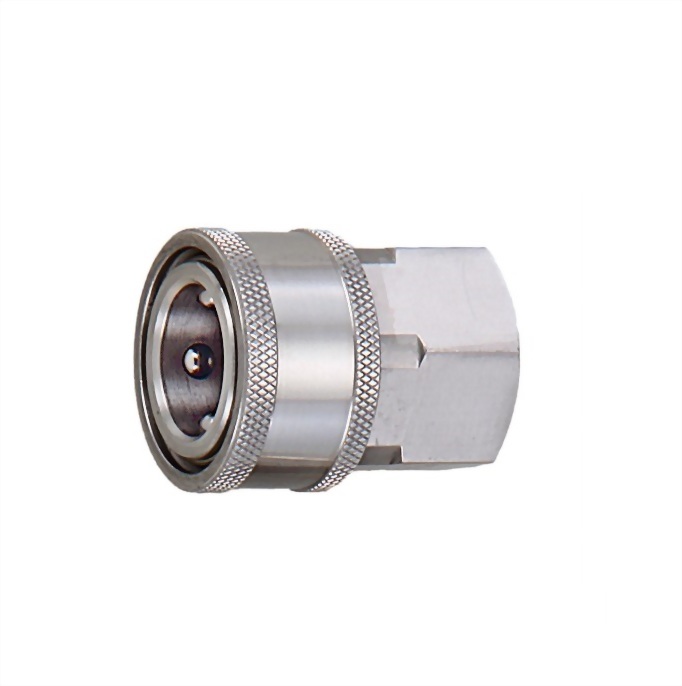

Female Socket-Heavy Duty Air Flow
Model :
200TSFS / 300TSFS / 400TSFS / 600TSFS
AIR QUICK COUPLER
TSP Series- Female Socket (Stainless)-Heavy Duty Air Flow
| Part No. | Size |
| 200TSFS | 1/4"PT |
| 300TSFS | 3/8"PT |
| 400TSFS | 1/2"PT |
| 600TSFS | 3/4"PT |
FEATURES:
1. High Flow design without shut-off valve.
2. Made by stainless material, can be used in Grease, Air, Water…etc.
APPLICATION:
1. Pneumatic tools
2. Air piping
3. Air pressure equipment
SPECIFICATION:
| Material | Stainless |
| Thread | PT |
| Working Pressure | 1088PSI (75Bar/7.5MPa) |
| Maximum Pressure | 1450PSI (100Bar/10MPa) |
| Temperature Range | -20℃ ~ +80℃ |
| Size | 1/4" (200Type) |
| 3/8" (300Type) | |
| 1/2" (400Type) | |
| 3/4" (600Type) |
＊ Meet The International Norms : JIS B 0203
