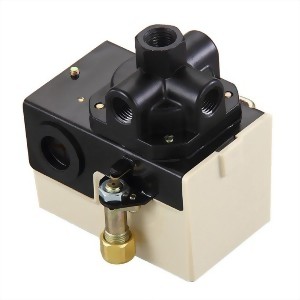

PRESSURE SWITCH - 1/4" FEMALE

Model : E22-A0/A1

AIR COMPRESSOR COMPONENT

PRESSURE SWITCH

1/4” FEMALE PORT ON THE BOTTOM

Model Min ON (Cut-In) PSI Max Off (Cut-In) PSI Differential PSI Factory Setting  PSI Electrical Rating Pipe Fittings Contact Arrangement
125V/AC 250V/AC
E20-A0 40 180 30~40 85-115 20A 15A 1/4" Female    (4 Ports) NC
E20-A1 1/4" Female    (4 Ports)
E21-A0 1/4" Male
E21-A1 1/4" Male
E22-A0 1/4" Female
E22-A1 1/4" Female

◎ A0:Bottom ports for wires.

◎ A1:Side ports for wires.
