Cylinder GH01

Model : ROTARY TABLE / AIR GRIPPER

THB-CYLINDER

ROTARY TABLE / AIR GRIPPER

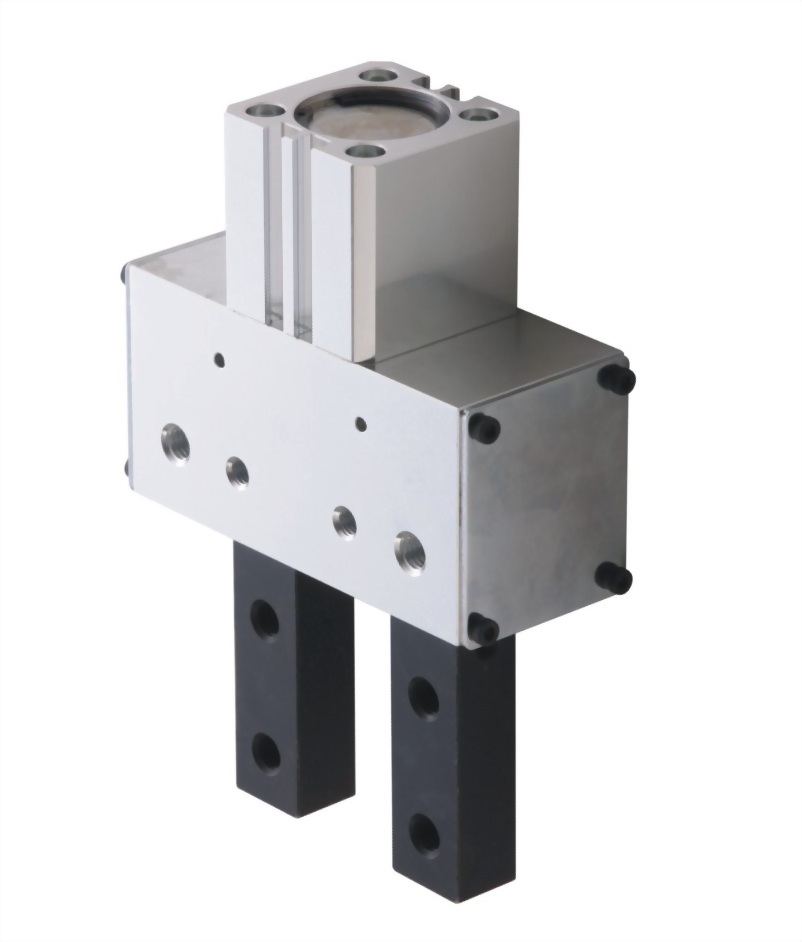

Parallel Style Air Gripper 2-Finger Type

 Model

GH01

 Action

Double acting

 Cylinder bore size(mm)

Φ25

 Port size

M5X0.8

 Fluid

Air

 Operating pressure(Mpa)

3~6

 Ambient and fluid temperature℃

0~+60

 Opening/Closing stroke(mm)(dia.)

42





Related Products

Cylinder CRM50R-50ASS1

Cylinder CRM50R-50ASS1

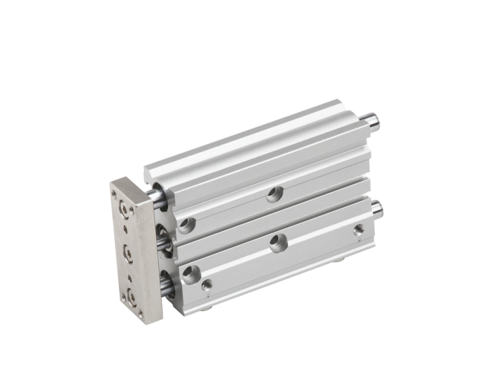

QG Cylinder
