Stainless Steel Mini Cylinder
Model :
QSM
THB-CYLINDER

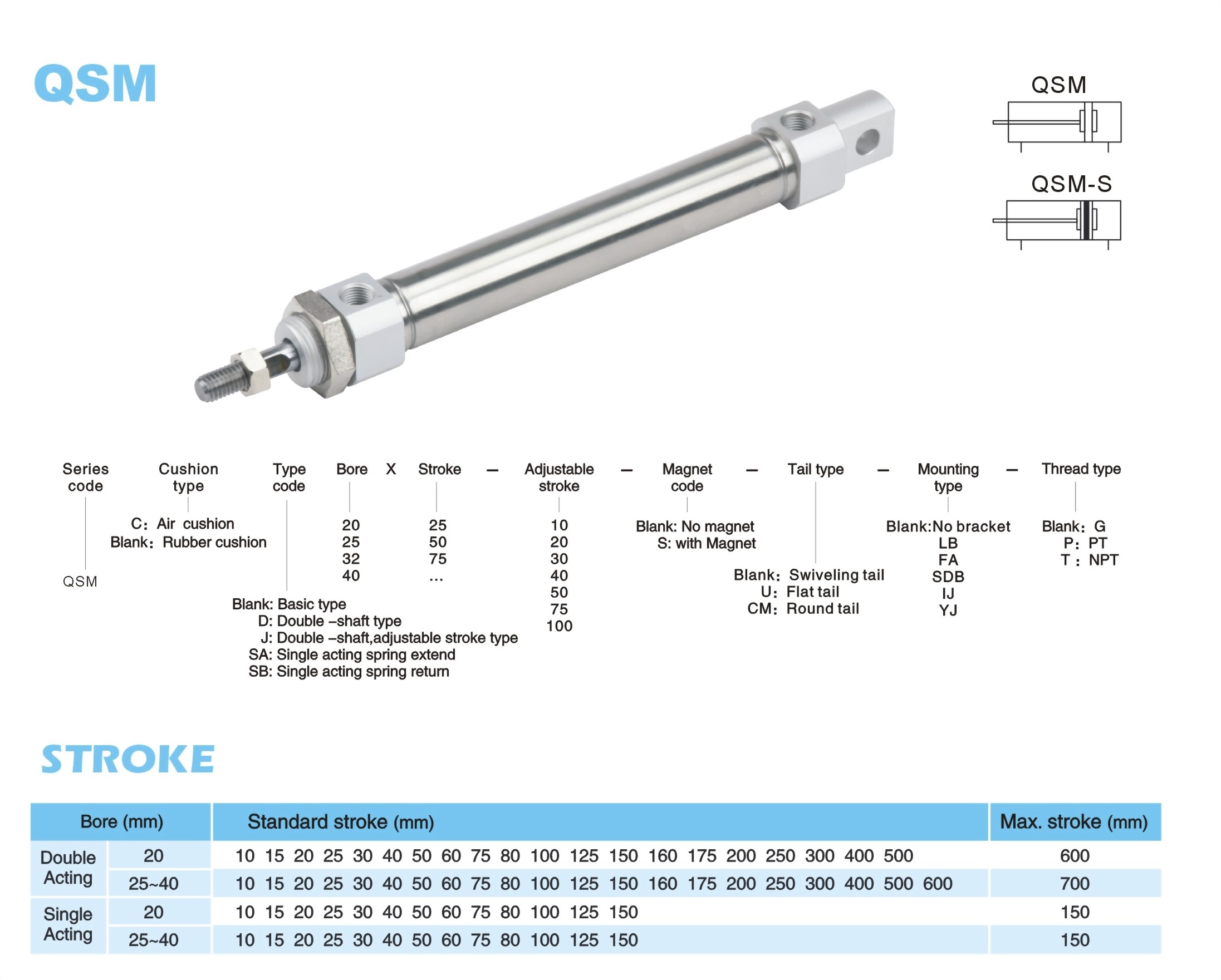

QSM Series Stainless Steel Mini Cylinder
SPECIFICATION
| Bore Size (mm) | 20 | 25 | 32 | 40 | |
| Acting type | Double Acting / Single Acting | ||||
| Working medium | Clean Air (40μm filteration) | ||||
| Working pressure | PSI | 14.5~145 29~145 | |||
| Bar | 1~10 2~10 | ||||
| Mpa | 0.1~1.0 0.2~1.0 | ||||
| (Double Acting ) (Single Acting) | |||||
| Guaranteed pressue | 215PSI / 15Bar / 1.5Mpa | ||||
| Working temperature | -20~80℃ / -5~176℉ (No freezing) | ||||
| Speed range (mm/s) | 50~800 | ||||
| Cushion type | Bumper | ||||
| Barrel material | Stainless Steel | ||||

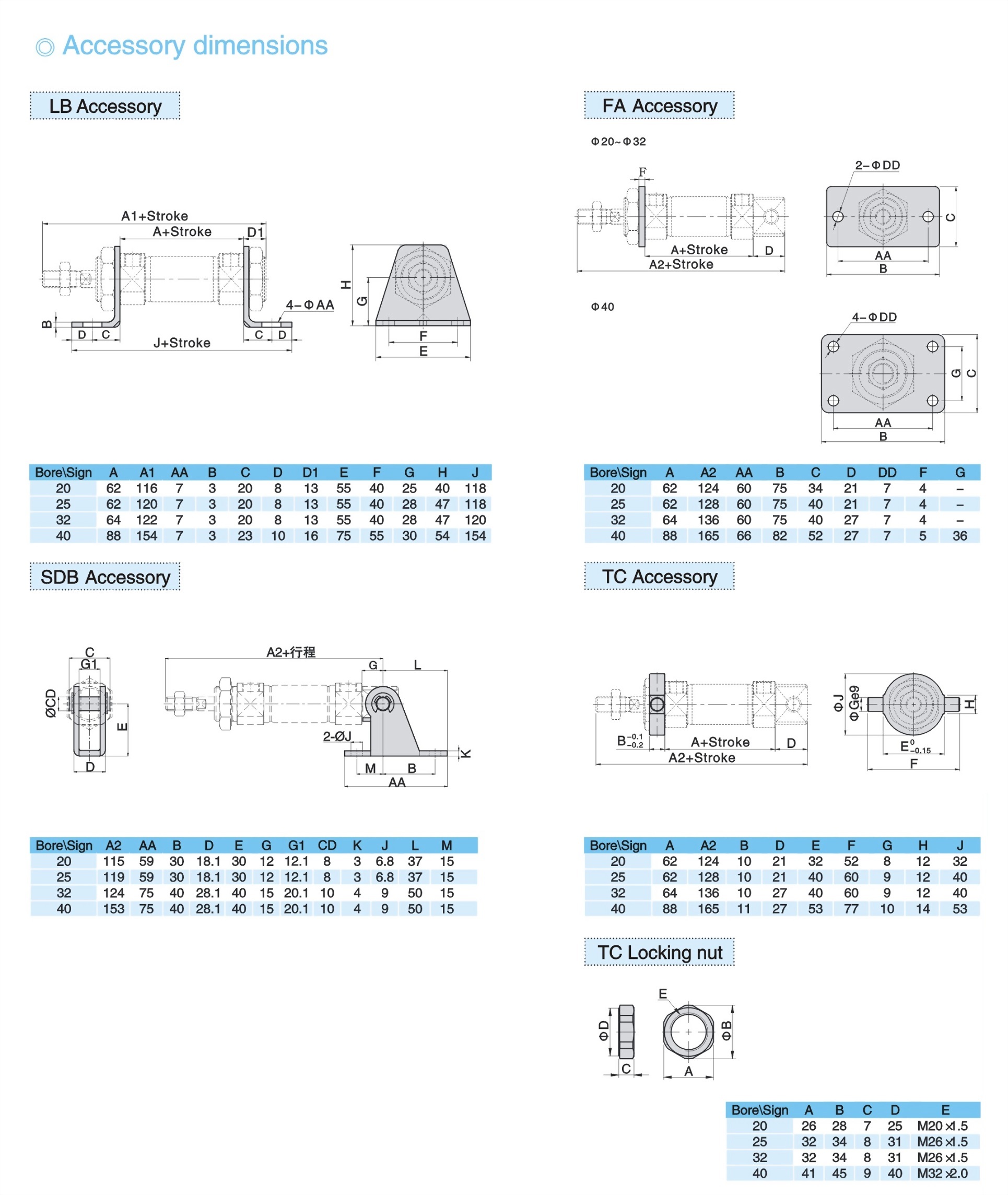

| Mounting type | LB FA SDB IJ YJ | ||||
| Port size | G1/8* | G1/4* | |||
* NPT、PT port size is optional.
