5 in 1 Universal Quick-Connect Coupler-Hose Barb end
AIR QUICK COUPLER

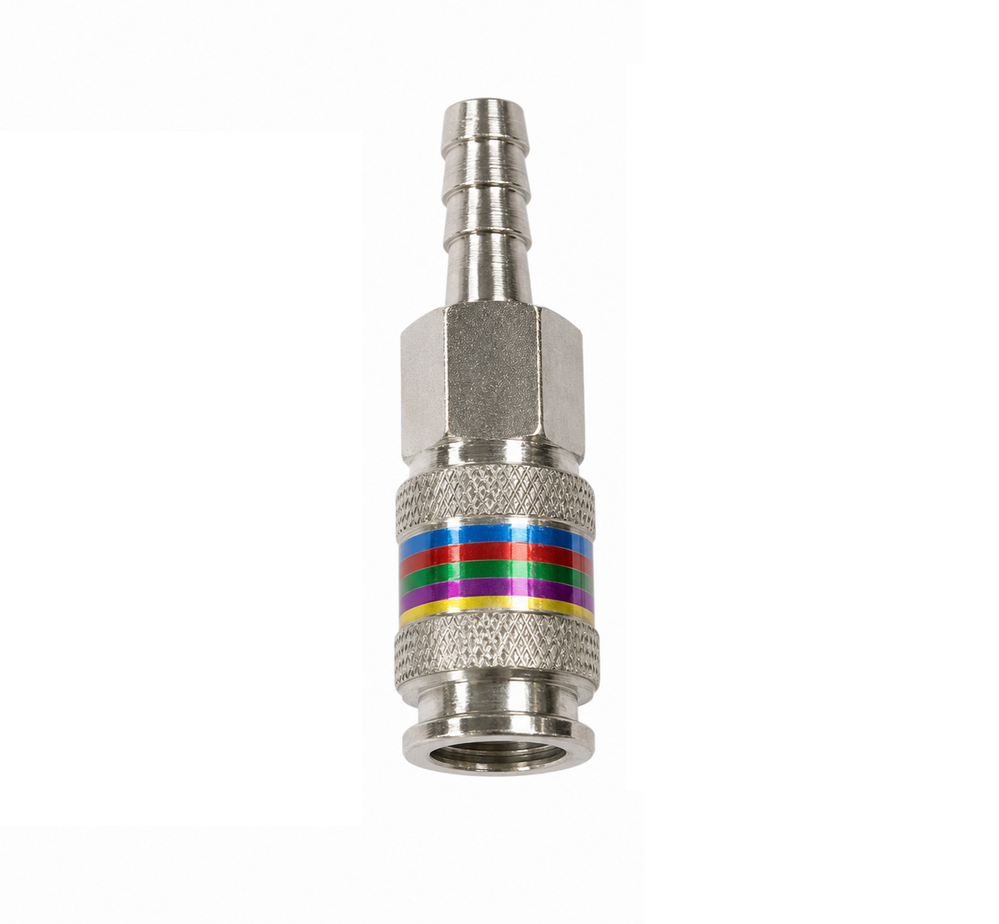

5 in 1 Universal Quick-Connect Coupler - Hose Barb end
五合一快速接頭(母) – 插心
Air Quick Coupler / Quick Disconnect Coupling / Quick Disconnector / Quick Connect / Quick Release Coupler (QRC) / Air Quick Coupling / Air Connectors & fitting / Quick coupling / Pneumatic couplings / Cople Rapido / Acople Rapido / Cngate rápido / Engate rápido para ar comprimido / Druckluftkupplungen / Schnellkupplungen / Stecknippel / Stecktüllen / Schnellverschluss-Kupplungen / Фитинг Муфта / Фитинг Штуцер / Connettore aria ad attacco rapido / Raccordi per aria compressa / Raccords rapides / Raccords et embouts / Trykluft koblinger og nipler / Snabbkopplingar och nipple / أداة تقرن / مقرنة /カプラー / カプラ / ハイカプラ / 空气用快速接头/相容接頭
| Part No. | Size |
| S2B-20SHA | 1/4" HOSE |
| S2B-30SHA | 3/8" HOSE |
FEATURES:
1.Compatible for 5 types of fitting:
with easier interchange, different systemscoupler can connect
with each other without limitation.
2. With 6 steel locking balls design which can enhance good connection,
ensure quality and prolong lifetime.
APPLICATION :
Pneumatic tools, Air piping, Air pressure equipment
SPECIFICATION :
| Series | S2B |
| SIZE |
1/4”(20 TYPE) 3/8”(30 TYPE) |
| Material | STEEL |
| Working Pressure |
15KGF/CM2 |
| Max. Working Pressure |
20KGF/CM2 |
| Temp Range |
-20~+80°c |
| Air Flow |
>450L/m(at 10KG/CM2) |

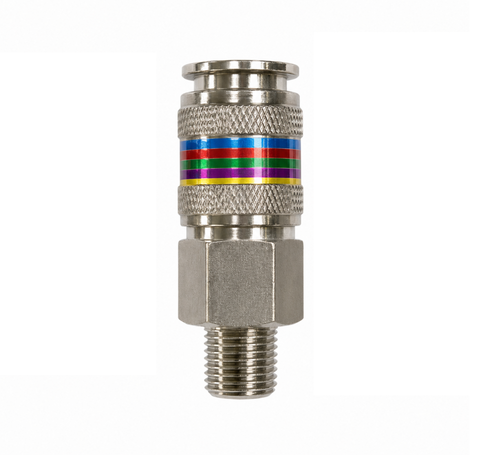

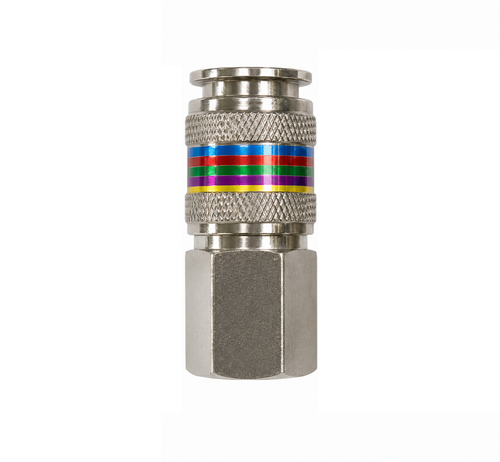

S2B SERIES TYPE :
Matchable areas :
