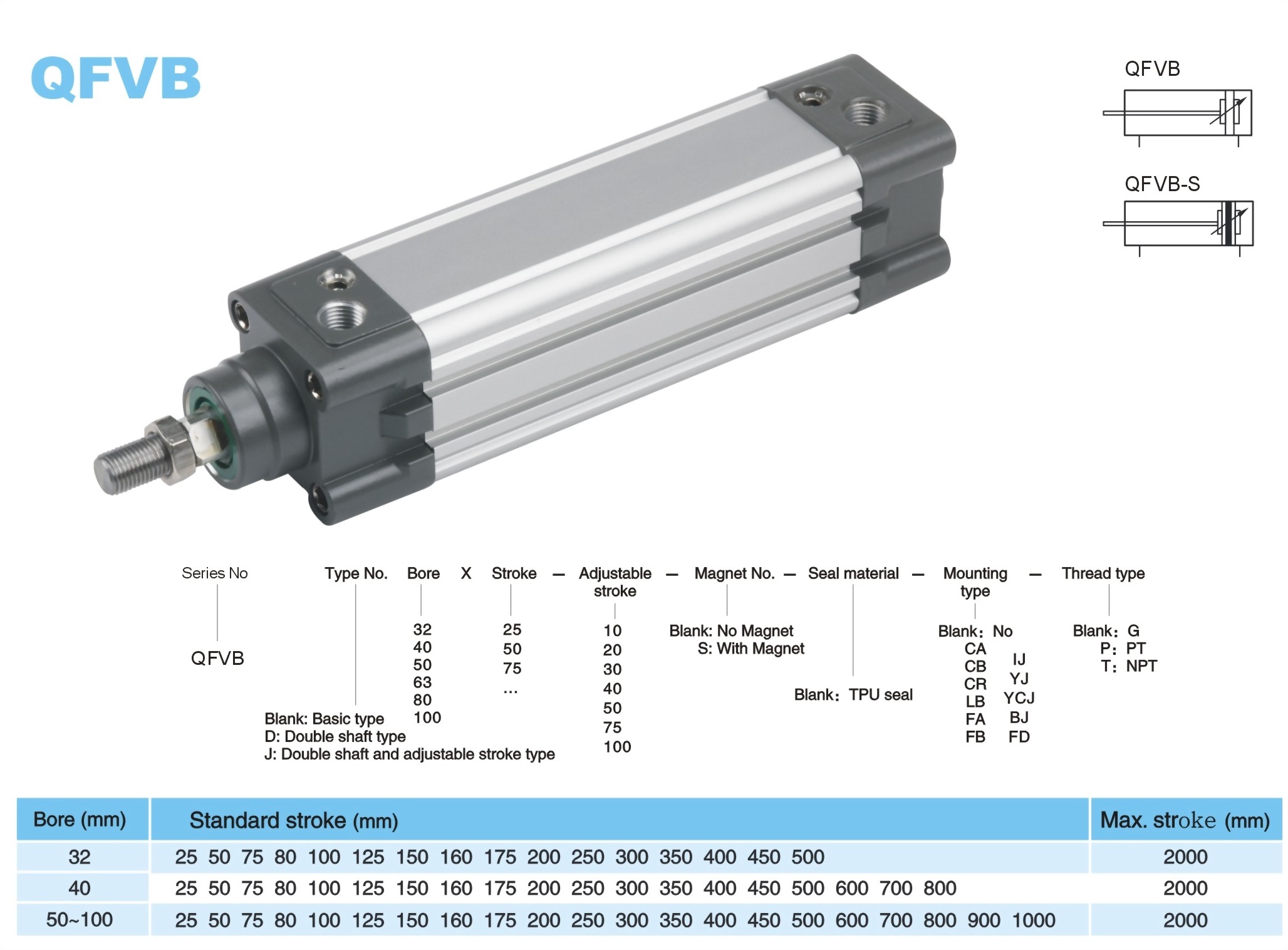

QFVB ISO15552 Standard Cylinder
Model :
QFVB
THB-CYLINDER
QFVB Series ISO 15552 Standard Cylinder
SPECIFICATION
| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting type | Double Acting | ||||||
| Working medium | Clean Air (40μm filteration) | ||||||
| Working pressure | PSI | 14.5~145 | |||||
| Bar | 1~10 | ||||||
| Mpa | 0.1~1.0 | ||||||
| Guaranteed pressue | 215PSI / 15Bar / 1.5Mpa | ||||||
| Working temperature | -20~80℃ / -5~176℉ (No freezing) | ||||||
| Speed range (mm/s) | 50~800 | ||||||
| Cushion type | Adjustable Cushion | ||||||
| Cushion stroke (mm) | 27 | 30 | 36 | ||||
| Mounting type | LB FA FB CA CB CR | ||||||
| Port size | G1/8* | G1/4* | G3/8* | G1/2* | |||
* NPT、PT port size is optional.
