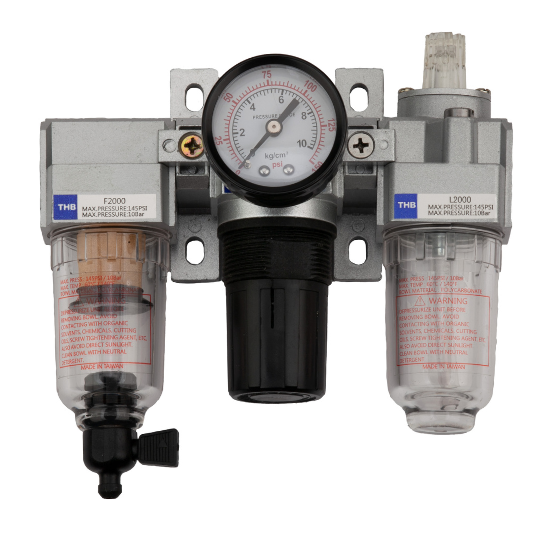

MINI (F+R+L) COMBO C20

Model : C201 / C202

THB-F.R.L. Air Control Unit, Mini type

迷你三段式三點組合

Air Filter/Regulator/Lubricator Modular (F.R.L. air control unit) / Air Combination / Air Source Treatment / Modular FRL Units / Air Preparation / Air Preparation Unit / Filter Regulator Lubricator Combinations / FRL Combination Units / Filter, Regulator, Lubricator Combinations / FRL Filtro regulador lubricador / Filtro FRL regulador lubrificador / Druckluft Aufbereitung / Filtro regolatore lubrificatore / Фильтр-влагоотделитель / Регулятор давления / Лубрикатор / Filtre régulateur lubrificateur / filtre, regulatorer, smøreapparater / Filter, regulatorer, smörjare / フィルタレギュレータ+ルブリケータ / FRLユニット / モジュラタイプF.R.L.コンビネーション / SARTLANDIRICI / ثلاث نقاط الجمع / 空氣調理組 / 三點過濾器

SPECIFICATION :

table border="1" cellpadding="0" cellspacing="0" bordercolor="#000000"><  Part No. C201 C202 FRL212  Description FRL201 FRL202  Medium Air  Port Size (PT, NPT) 1/8” 1/4” 1/4”  Filter Element 5μ  Proof Input Pressure  Psi 150 280 Mpa 1 2  Proof Output   Pressure  Psi 145 232 Mpa 0.99 1.6  Max Flow (L/min) 1000 1100 1100  Operation Temperature Range 5 ~  60  Drain Capacity 15 ml  Oil Capacity 30 ml  Minimum Dripping Flow Rate   (L/min(ANR))* 15  Recommendable Lubricants ISO VG-32 More Options  Air Filter F201 F202 F212  Regulator R201 R202 R212  Air Filter + Regulator FR201 FR202 FR212  Lubricator L201 L202 L212  Meet the international norms Flow capacity : ISO 6358 / ISO 6953

* The flow rate is 5 drops or greater/min under the following conditions : Inlet pressure of 0.5 MPa; Class 1 turbine oil (ISO VG32); Temperature at 20°C; Oil adjustment valve fully open.

* For a circuit that repeatedly turns ON and OFF on the outlet side, make the adjustment so that the average air consumption per minute becomes the minimum dripping flow rate or more.

* Lubrication cannot be properly performed if the operating flow rate is too low. Select an appropriately size lubricator by referring to the minimum dripping flow rate provided in the catalog.


Meet The International Norms

Air Filter : ISO 5782-1 & -2 / JIS B 8371

Regulator : ISO 6953-1 & -2 / JIS B 8372

Air Filter+Regulator : ISO 5782-1&-2 / ISO 6953-1&-2/ JIS B 8372 / JIS B 8371

Lubricator : ISO 6301-1 & -2 / JIS B 8378

FEATURES :

1. Compact design for limited space

2. Easy installation

3. Cost effective
