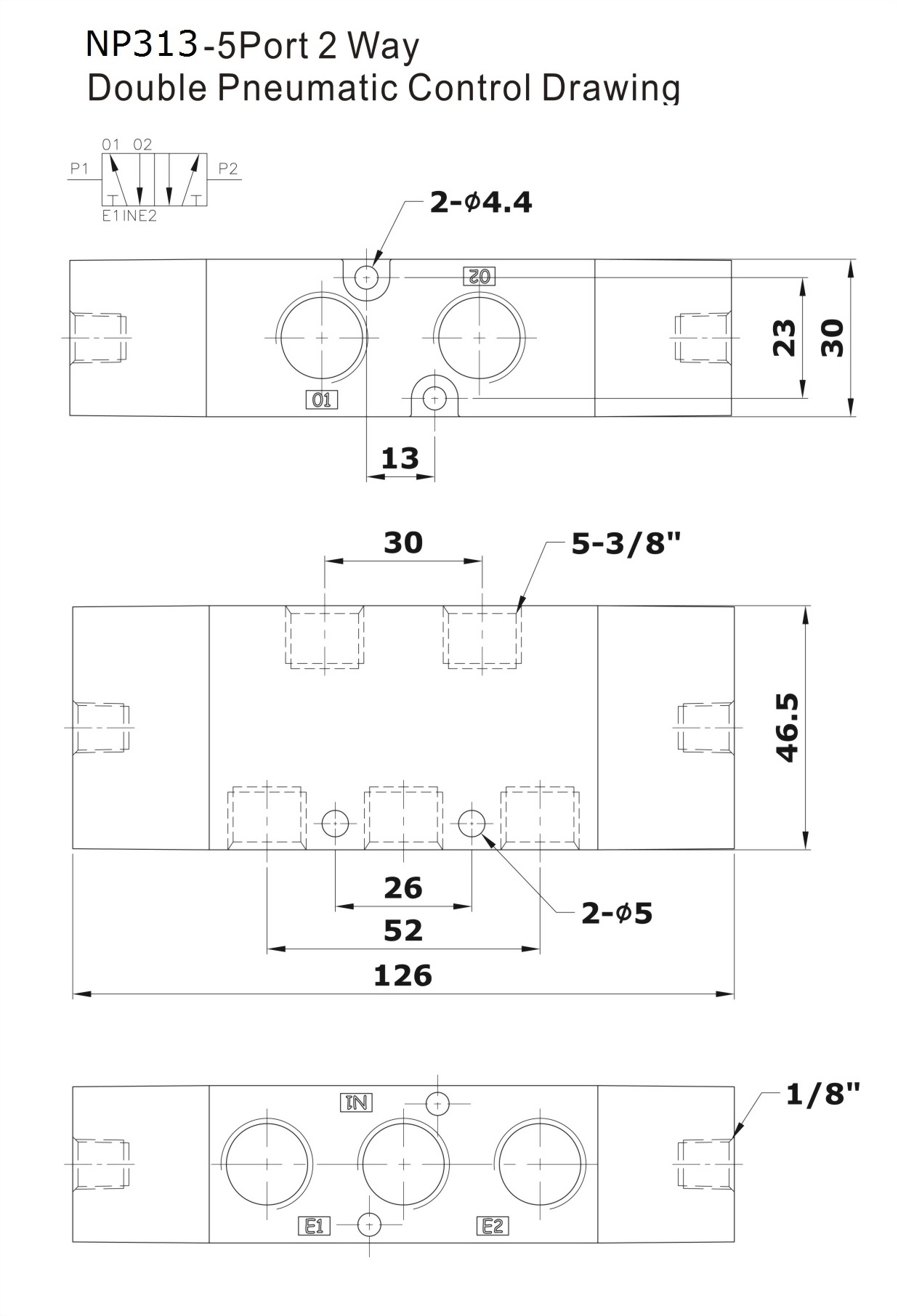

• PNEUMATIC VALVE-5 PORTS 2 WAYS-30 (DOUBLE)

PNEUMATIC VALVE-5 PORTS 2 WAYS-30 (DOUBLE)

Model : NP313 (A2)

PNEUMATIC VALVE

5 PORT 2 WAY, DOUBLE

雙頭五口二位氣動閥 (三分本體)



SPECIFICATION:

  Part No. NP313(A1) NP313(A2) NP313(A2C/A2P/A2R)
  Medium Air
  Port Size 3/8 PT, NPT, G
  Pneumatic control Single Double
  Ambient Temp -5 ~ 60 ℃ (No freezing)
  Flow (L/min) 4300
  Reflective Time 0.05s
  Circulation Volume CV=1.77
  Pilot pressure range 1.5~8Bar (22~114PSI/0.15~0.8MPa)


ORDER INFORMATION:

NP 31 3 A2 C
  Pneumatic Valve   Body size    Port Size     Pneumatic   Position
    31 – 3/8”   3 – 3/8”   A1:Single   C:Closed Center
      A2: Double   P:Pressurized Center
          R:Exhaust Center
