Parallel Style Air Gripper 3-Finger Type
Model :

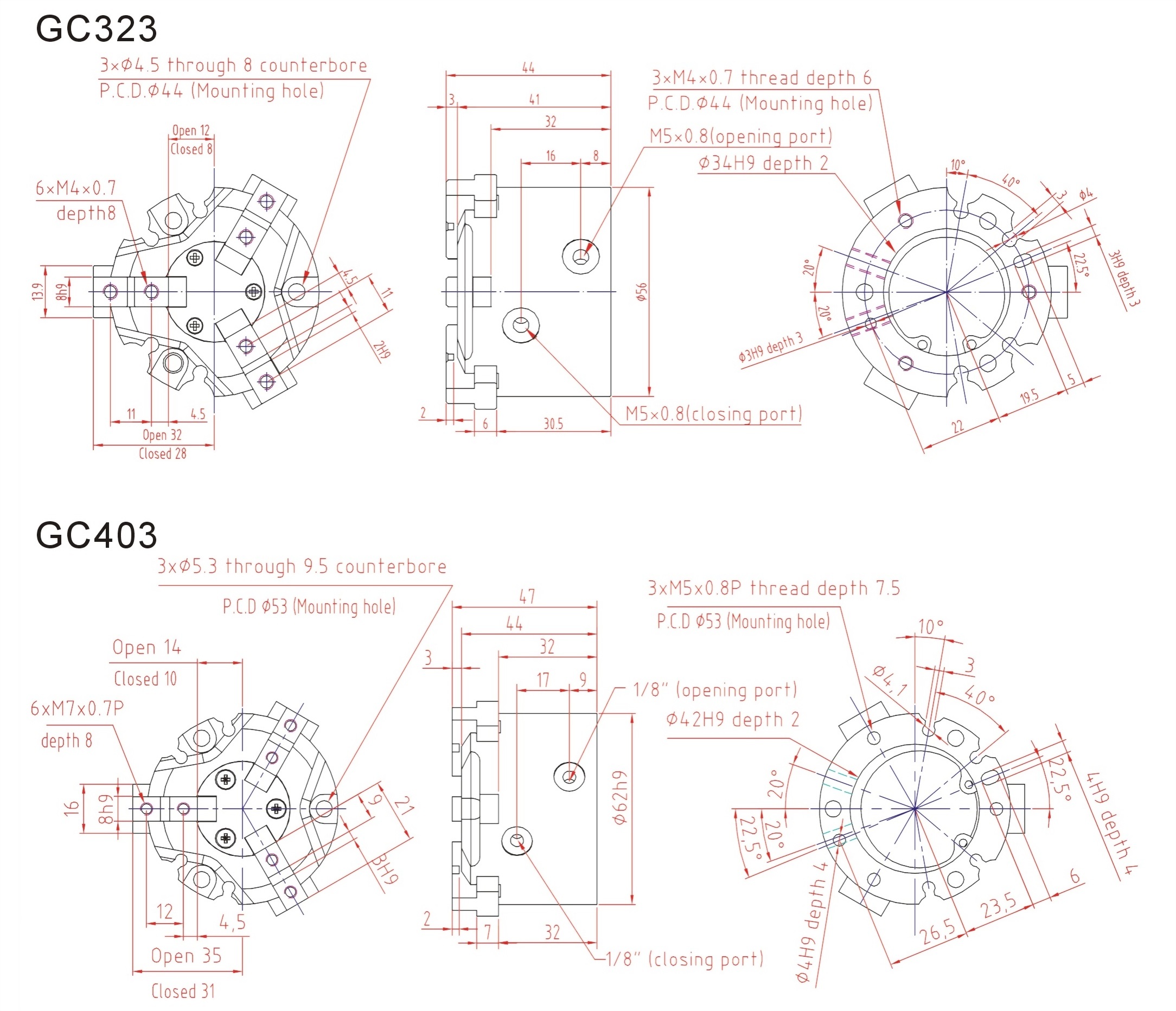

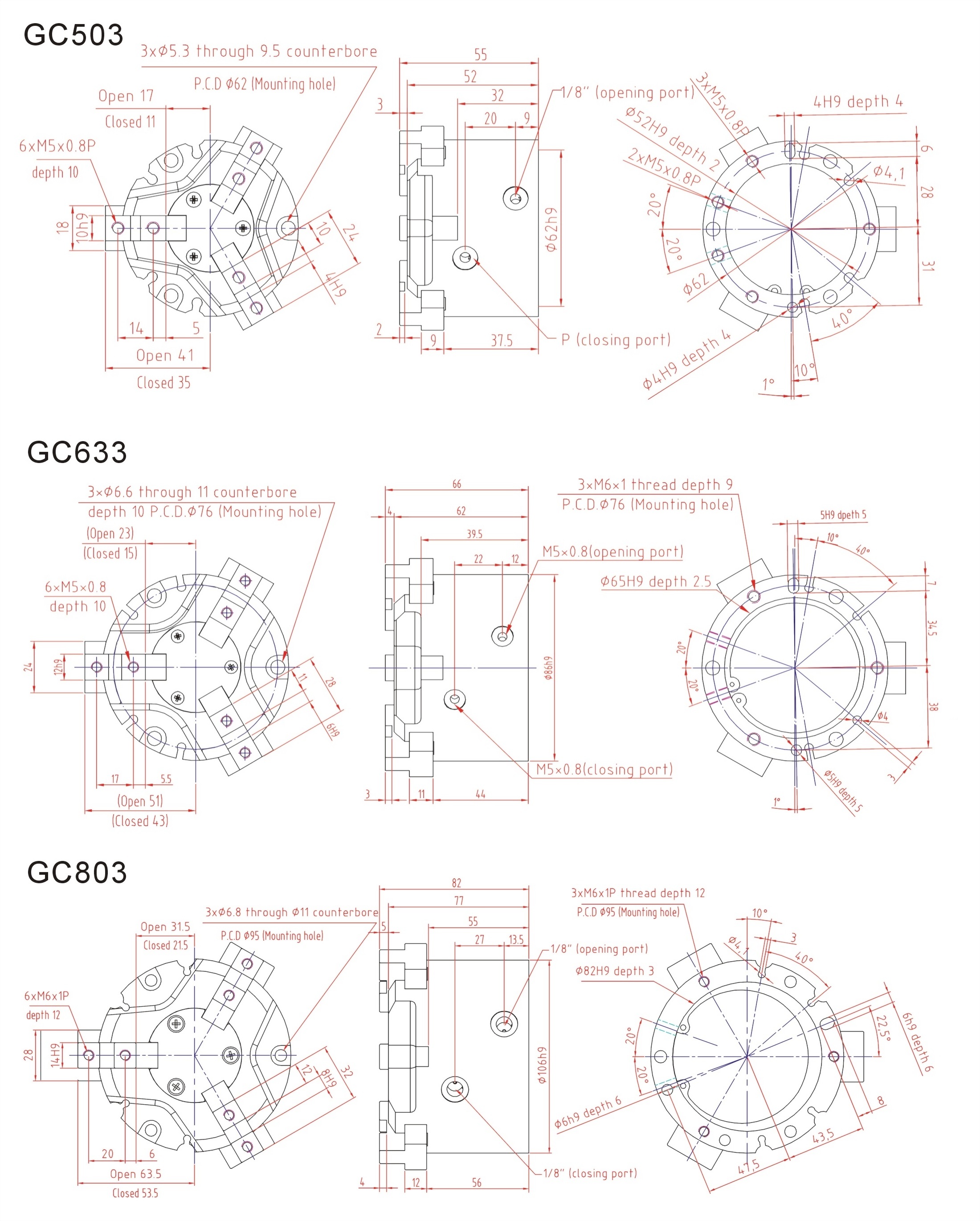

GC323 / GC403 / GC503 / GC633 / GC803
THB-CYLINDER
ROTARY TABLE / AIR GRIPPER
Parallel Style Air Gripper 3-Finger Type
|
Part No. |
GC323 | GC403 | GC503 | GC633 | GC803 | |
|
Cylinder Bore Size (mm) |
32 | 40 |
50 |
63 |
80 |
|
|
Port Size |
M5X0.8 |
1/8" | ||||
|
Fluid |
Air |
|||||
|
Operating Pressure (Bar) |
1~6 |
|||||
|
Ambient and Fluid Temperature (℃) |
-10~+60 |
|||||
|
Repeatability (mm) |
±0.01 |
|||||
|
Max. Operating Frequency (C.P.M.) |
60 |
|||||
|
Opening / Closing Stroke (Both Sides) (mm) |
8 |
8 |
12 |
16 |
20 |
|
|
Action |
Double Acting |
|||||
|
Effective Gripping Force (N) At 5 Bar |
External Grip |
74 | 118 | 187 | 335 | 500 |
|
Internal Grip |
82 | 130 | 204 | 359 | 525 | |
