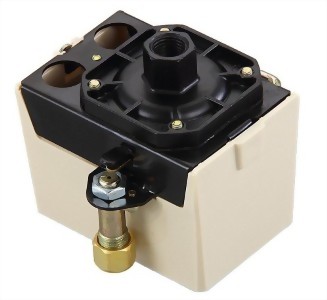

E21-A0/A1
Model :
E21-A0/A1
AIR COMPRESSOR COMPONENT
PRESSURE SWITCH
1/4” MALE PORT ON THE BOTTOM
| Model | Min ON (Cut-In) PSI | Max Off (Cut-In) PSI | Differential PSI | Factory Setting PSI | Electrical Rating | Pipe Fittings | Contact Arrangement | |
| 125V/AC | 250V/AC | |||||||
| E20-A0 | 40 | 180 | 30~40 | 85-115 | 20A | 15A | 1/4" Female (4 Ports) | NC |
| E20-A1 | 1/4" Female (4 Ports) | |||||||
| E21-A0 | 1/4" Male | |||||||
| E21-A1 | 1/4" Male | |||||||
| E22-A0 | 1/4" Female | |||||||
| E22-A1 | 1/4" Female | |||||||
◎ A0：Bottom ports for wires.
◎ A1：Side ports for wires.
