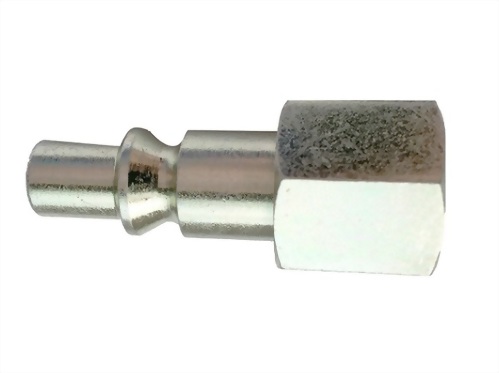

• 1/4” BODY SFA

1/4” BODY SFA

Model : S22

AIR QUICK COUPLING

ARO TYPE 1/4” BODY - Female thread

美式快速接頭() – 內

Air Quick Coupler / Quick Disconnect Coupling / Quick Disconnector / Quick Connect / Quick Release Coupler (QRC) / Air Quick Coupling / Air Connectors & fitting / Quick coupling / Pneumatic couplings / Cople Rapido / Acople Rapido / Cngate rápido / Engate rápido para ar comprimido / Druckluftkupplungen / Schnellkupplungen / Stecknippel / Stecktüllen / Schnellverschluss-Kupplungen / Фитинг Муфта / Фитинг Штуцер / Connettore aria ad attacco rapido / Raccordi per aria compressa / Raccords rapides / Raccords et embouts / Trykluft koblinger og nipler / Snabbkopplingar och nipple / أداة تقرن / مقرنة /カプラー / カプラ / ハイカプラ / 空气用快速接头/相容接頭


Part No. Size
S22-20SFA 1/4" NPT
S22-30SFA 3/8" NPT

FEATURES:

1. Compatible with other manufacturer’s ARO Interchange.

2. Yellow zinc dichromate-plated steel.

3. Certificate of RoHS compliance.

APPLICATION:

1. Pneumatic tools

2. Air piping

3. Air pressure equipment

SPECIFICATION:

 Material Steel Brass
 Thread NPT
 Working Pressure 218 PSI   (15Bar/1.5MPa) 145PSI (10Bar/1MPa)
 Maximum Pressure 290 PSI   (20Bar/2MPa) 218 PSI (15Bar/1.5MPa)
 Temperature Range -20℃ ~ +80℃
 Size 1/4" (20 Type)
3/8" (30 Type)
