FLOW CONTROL VALVE
Model :
VF20
AIR TOOL ACCESSORY
VF20 FLOW CONTROL VALVE
SPECIFICATION :
| Part Number | VF201 | VF202 |
| Medium | Air | |
| Port Size | 1/8” PT,NPT,G | 1/4” PT,NPT,G |
| Operating Pressure Range | 0~15Bar (0~218psi) | |
| Proof Pressure | 20Bar (290psi) | |
| Ambient Temp | -20~80 °C | |

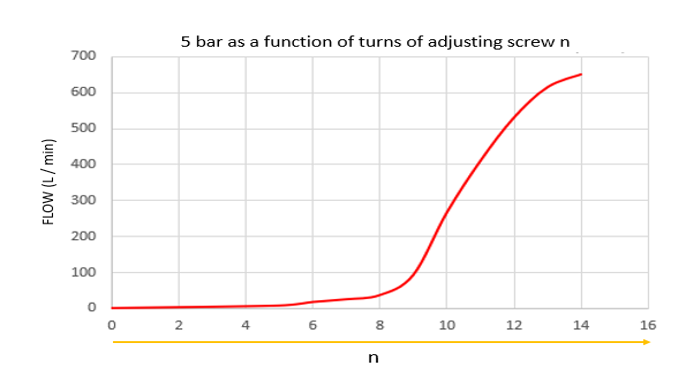

| Flow(L/min) @5bar (72psi) | 650 | |
| Number of Needle Rotations | 14 | |
FEATURES :
1. High flow (650L@5bar) with light weight (64g)
2. The inlet and outlet holes are on the same axis
3. Completely airtight when fasten the screw
4. Easily install in any equipment
5. Precise adjustment screw with 0.5mm thread pitch
APPLICATION :
Mounting position in any airflow equipment
