• HEAVY DUTY REGULATOR R70

HEAVY DUTY REGULATOR R70

Model : R704 / R706

F.R.L. AIR CONTROL UNIT

Air Regulator (Heavy Duty type

調壓器

Air Filter/Regulator/Lubricator Modular (F.R.L. air control unit) / Air Combination / Air Source Treatment / Modular FRL Units / Air Preparation / Air Preparation Unit / Filter Regulator Lubricator Combinations / FRL Combination Units / Filter, Regulator, Lubricator Combinations / FRL Filtro regulador lubricador / Filtro FRL regulador lubrificador / Druckluft Aufbereitung / Filtro regolatore lubrificatore / Фильтр-влагоотделитель / Регулятор давления / Лубрикатор / Filtre régulateur lubrificateur / filtre, regulatorer, smøreapparater / Filter, regulatorer, smörjare / フィルタレギュレータ+ルブリケータ / FRLユニット / モジュラタイプF.R.L.コンビネーション / SARTLANDIRICI / ثلاث نقاط الجمع / 空氣調理組 / 三點過濾器


SPECIFICATION:

 Part No.             C704 CD704 CM704 C706 CD706 CM706
 Description FRL724 FRLD704 FRLM704 FRL726 FRLD706 FRLM706
FRL704 FRL706
 Medium Air
 Port Size (PT, NPT, G) 1/2” 3/4”
 Filter Element 0.3μ 0.01μ 0.3μ 0.01μ
 Max Flow (L/min) 4000 3900 4000 3900
 Proof Input Pressure  Psi 250
Mpa 1.7
 Proof Output   Pressure  Psi 225
Mpa 1.5
 Operation Temperature   Range 5 ~  60
 Drain Capacity 80 ml
 Oil Capacity 150 ml
 Minimum Dripping Flow Rate   (L/min(ANR))* 50
 Recommendable Lubricants ISO VG-32
More Options

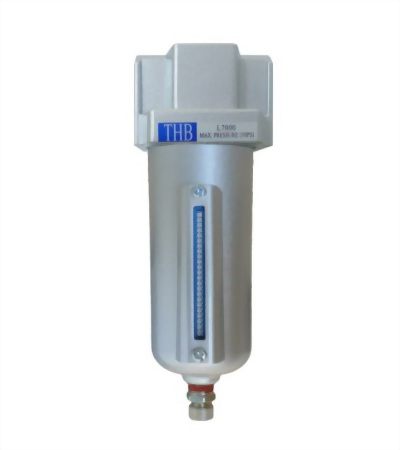

 Air Filter F704 FD704 FM704 F706 FD706 FM706
 Regulator R704 R706

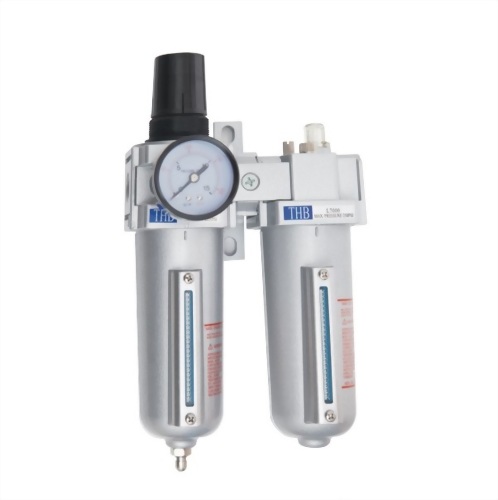

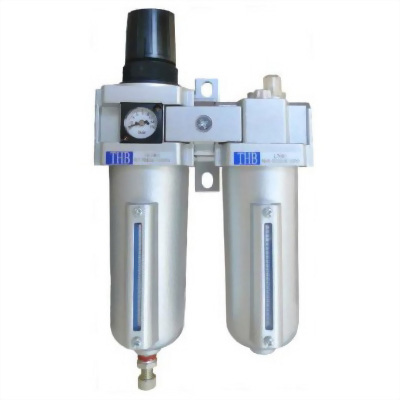

 Air Filter + Regulator FR724 FRD704 FRM704 FR726 FRD706 FRM706
FR704 FR706
 Lubricator L704 L706

* The flow rate is 5 drops or greater/min under the following conditions : Inlet pressure of 0.5 MPa; Class 1 turbine oil (ISO VG32); Temperature at 20°C; Oil adjustment valve fully open.

* For a circuit that repeatedly turns ON and OFF on the outlet side, make the adjustment so that the average air consumption per minute becomes the minimum dripping flow rate or more.

* Lubrication cannot be properly performed if the operating flow rate is too low. Select an appropriately size lubricator by referring to the minimum dripping flow rate provided in the catalog.


FEATURES:

1. Heavy duty type -- High Air flow and drain capacity.

2. Transparent water level indicator for easy checking.

3. 70 series is suitable for any high flow air pressure equipment or system.
