• HI-FLOW FILTER REGULATOR - 90 SERIES FR92

HI-FLOW FILTER REGULATOR - 90 SERIES FR92

Model : FR92

F.R.L. AIR CONTROL UNIT

Air Filter / Regulator Modular

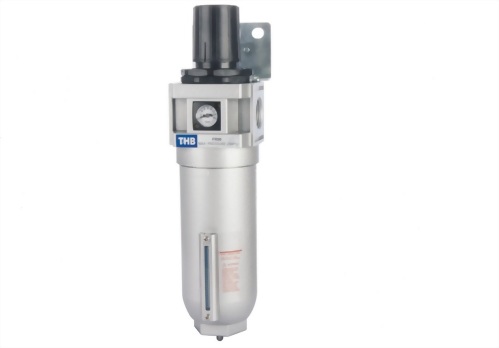

Hi-Flow Filter Regulator

調壓過濾器

Air Filter/Regulator/Lubricator Modular (F.R.L. air control unit) / Air Combination / Air Source Treatment / Modular FRL Units / Air Preparation / Air Preparation Unit / Filter Regulator Lubricator Combinations / FRL Combination Units / Filter, Regulator, Lubricator Combinations / FRL Filtro regulador lubricador / Filtro FRL regulador lubrificador / Druckluft Aufbereitung / Filtro regolatore lubrificatore / Фильтр-влагоотделитель / Регулятор давления / Лубрикатор / Filtre régulateur lubrificateur / filtre, regulatorer, smøreapparater / Filter, regulatorer, smörjare / フィルタレギュレータ+ルブリケータ / FRLユニット / モジュラタイプF.R.L.コンビネーション / SARTLANDIRICI / ثلاث نقاط الجمع / 空氣調理組 / 三點過濾器

SPECIFICATION:

         Part No.          Description FR906 FR926 FR908 FR928 FR906A FR926A FR908A FR928A
  Medium Air
  Port Size (PT, NPT) 3/4” 1” 3/4” 1”
  Filter Element
 Proof Input    Pressure  Psi 250 165
Mpa 1.7 1.1
 Proof Output  Pressure  Psi 225 150
Mpa 1.6 1
  Max Flow (L/min) 4600 5200 4600 5200
Operation Temperature Range 5℃ ~  60℃
  Drain Capacity 300 ml

FEATURES:

1. Heavy duty type -- High Air flow and drain capacity.

2. Transparent water level indicator for easy checking.

3. 90 series is suitable for any high flow air pressure equipment or system.



ORDER INFORMATION:
