5 in 1 Universal Quick-Connect Coupler
AIR QUICK COUPLER

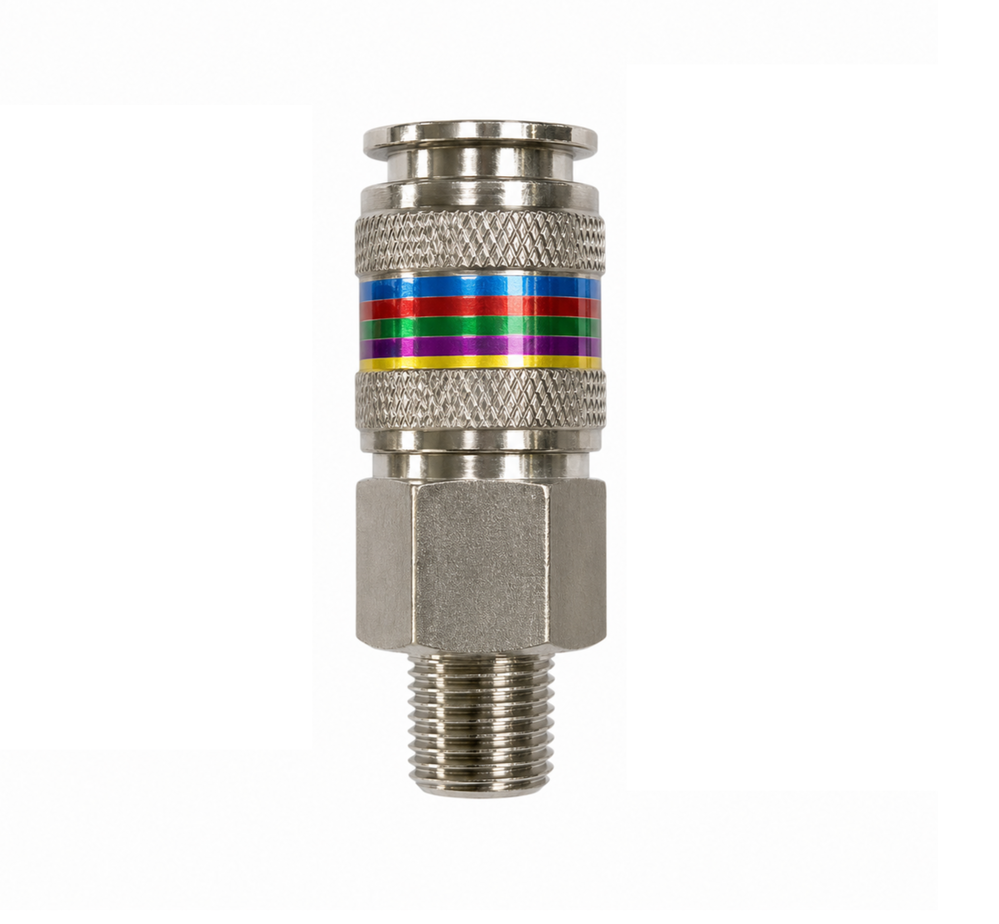

5 in 1 Universal Quick-Connect Coupler - Female thread
五合一快速接頭(母) – 內牙
Air Quick Coupler / Quick Disconnect Coupling / Quick Disconnector / Quick Connect / Quick Release Coupler (QRC) / Air Quick Coupling / Air Connectors & fitting / Quick coupling / Pneumatic couplings / Cople Rapido / Acople Rapido / Cngate rápido / Engate rápido para ar comprimido / Druckluftkupplungen / Schnellkupplungen / Stecknippel / Stecktüllen / Schnellverschluss-Kupplungen / Фитинг Муфта / Фитинг Штуцер / Connettore aria ad attacco rapido / Raccordi per aria compressa / Raccords rapides / Raccords et embouts / Trykluft koblinger og nipler / Snabbkopplingar och nipple / أداة تقرن / مقرنة /カプラー / カプラ / ハイカプラ / 空气用快速接头/相容接頭
| Part No. | Size |
| S2B-20SFA | 1/4" NPT |
| S2B-30SFA | 3/8" NPT |
|
S2B-20SFG |
1/4"G |
| S2B-30SFG | 3/8"G |
FEATURES:
1.Compatible for 5 types of fitting:
with easier interchange, different systemscoupler can connect
with each other without limitation.
2. With 6 steel locking balls design which can enhance good connection,
ensure quality and prolong lifetime.
APPLICATION :
Pneumatic tools, Air piping, Air pressure equipment
SPECIFICATION :
1/4”(20
TYPE) 3/8”(30 TYPE)
15KGF/CM2
20KGF/CM2
-20~+80°c
>450L/m(at
10KG/CM2)
Series
S2B
SIZE
Material
STEEL
Working Pressure
Max. Working Pressure
Temp
Range
Air Flow
S2B SERIES TYPE :
Matchable areas :
