• 1/2” BODY COUPLER S2D

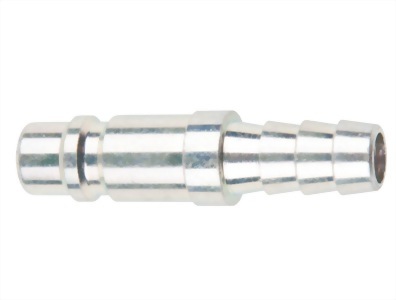

1/2” BODY COUPLER S2D

Model : S2D-PH

AIR QUICK COUPLER

INDUSTRIAL TYPE 1/2” BODY Plug - Hose Barb end

美式快速接頭(公) – 插心

Air Quick Coupler / Quick Disconnect Coupling / Quick Disconnector / Quick Connect / Quick Release Coupler (QRC) / Air Quick Coupling / Air Connectors & fitting / Quick coupling / Pneumatic couplings / Cople Rapido / Acople Rapido / Cngate rápido / Engate rápido para ar comprimido / Druckluftkupplungen / Schnellkupplungen / Stecknippel / Stecktüllen / Schnellverschluss-Kupplungen / Фитинг Муфта / Фитинг Штуцер / Connettore aria ad attacco rapido / Raccordi per aria compressa / Raccords rapides / Raccords et embouts / Trykluft koblinger og nipler / Snabbkopplingar och nipple / أداة تقرن / مقرنة /カプラー / カプラ / ハイカプラ / 空气用快速接头/相容接頭


Part No. Size
S2D-40PHA 1/2" HOSE


FEATURES:

1. 1/2” body design for Industrial Interchange

2. Compatible with other manufacturer’s Industrial interchange.

3. Six steel locking balls design.

4. Certificate of RoHS compliance.

APPLICATION:

1. Pneumatic tools

2. Air piping

3. Air pressure equipment

SPECIFICATION:

 Material Steel
 Thread NPT
 Working Pressure 218PSI (15Bar/1.5MPa)
 Maximum Pressure 290PSI (20Bar/2MPa)
 Temperature Range -20℃ ~ +80℃
 Size 3/8"(30 TYPE)
1/2"(40 TYPE)
