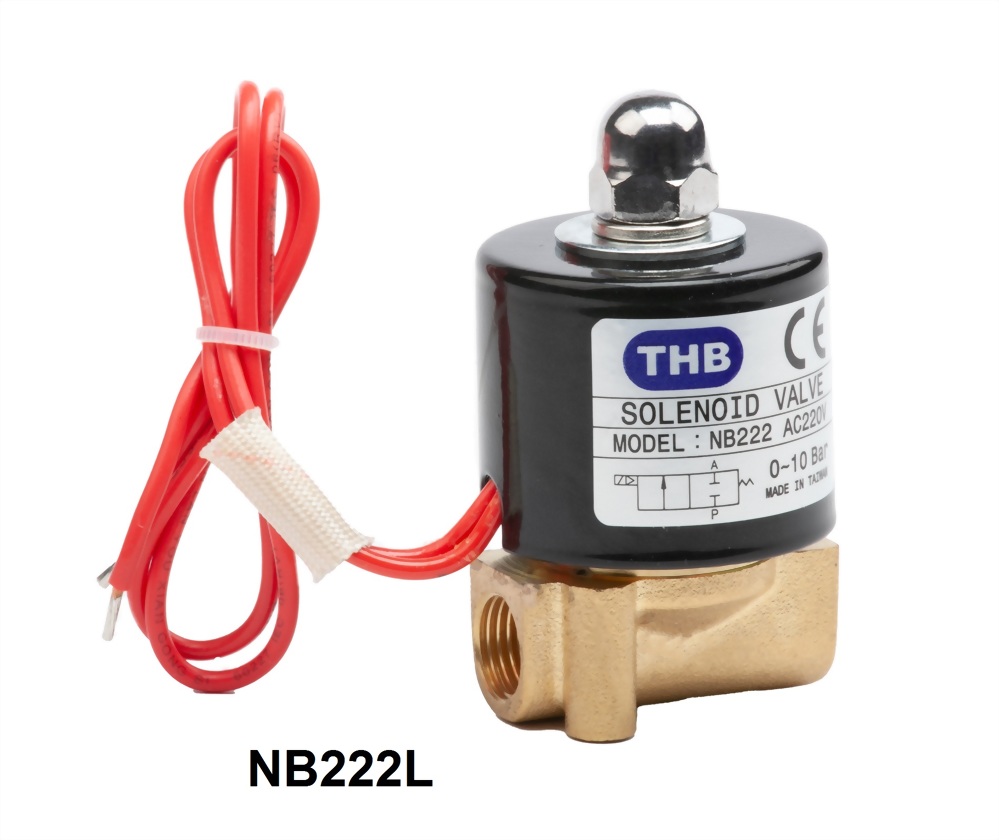

1/4"(Brass)SOLENOID VALVE
Model :
NB222
SOLENOID VALVE
2 PORT 2 WAY, 1/4" (Brass) SOLENOID VALVE
Solenoid Valve / Elektrisch und pneumatisch betätigte Wegeventile / Соленоидный клапан / Valvole di controllo direzione ad azionamento elettrico e pneumatico / Distributeurs à commande électrique et pneumatique / Solenoid valve / Magnetventil / Solenoid valfi / Selenoid vana / ソレノイドバルブ / ソレノイド弁 / 電磁弁(でんじべん) / صمام الملف اللولبي / 電磁閥
SPECIFICATION :
Part no. | NB222 | NB232 | NB404 |
Medium | Air, Water, Oil | ||
Working Pressure(BAR) | 7 | 20 | Air :10 , Water & Oil : 7 |
Max Pressure(BAR) | 10 | 35 | 10 |
Valve Type | Normally Closed | ||
Operating Method | Direct action | ||
Orifice(mm) | 2.5 | 1.2 | 16 |
CV Value | 0.23 | 0.05 | 4.8 |
Port Size | 1/4" | 1/4" | 1/2" |
Medium Viscosity | Under 20CST | ||
Ambient Temp(°C) | -5~80 | ||
Voltage(V) | AC110 、 AC220 、DC24 | ||
Voltage Range | 90~110% | ||
Body Material | Brass |
1. IP rating: IP 65
2. Voltage drop range within ±10%
3. Working at zero pressure is available
4. DIN coil and Grommet can be chosen
5. Can be used as a switch for both air, water and oil
APPLICATION:
1.Pneumatic tools
2.Petrochemical power
3.Mechanical engineering
