• Hose Safety Push-Button Socket

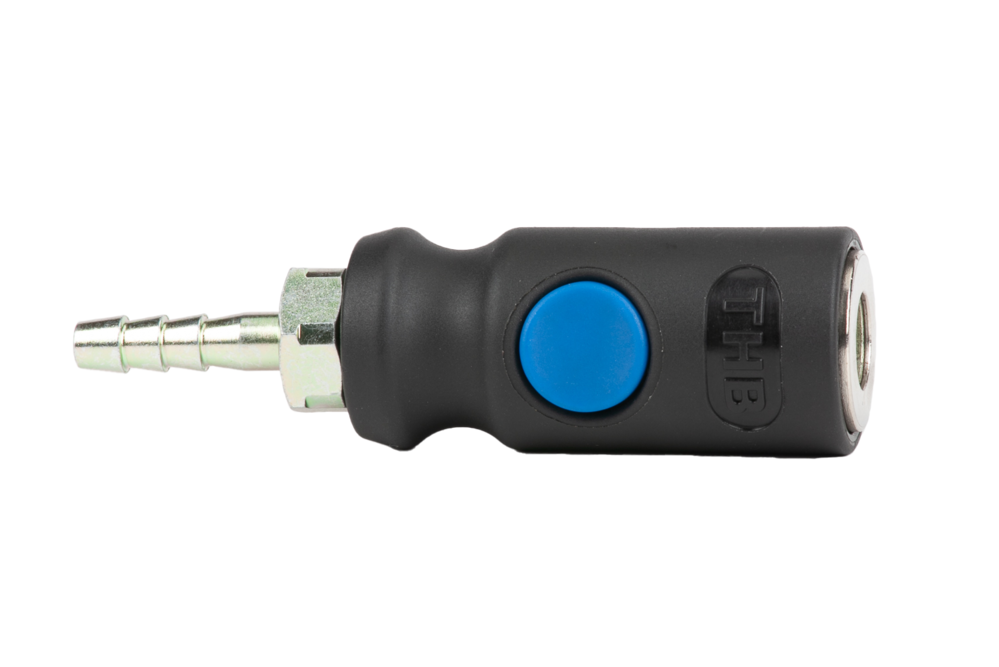

Hose Safety Push-Button Socket

Model : S20P-SH

THB-AIR QUICK COUPLING

Safety Push Button Coupler

Air Quick Coupler / Quick Disconnect Coupling / Quick Disconnector / Quick Connect / Quick Release Coupler (QRC) / Air Quick Coupling / Air Connectors & fitting / Quick coupling / Pneumatic couplings / Cople Rapido / Acople Rapido / Cngate rápido / Engate rápido para ar comprimido / Druckluftkupplungen / Schnellkupplungen / Stecknippel / Stecktüllen / Schnellverschluss-Kupplungen / Фитинг Муфта / Фитинг Штуцер / Connettore aria ad attacco rapido / Raccordi per aria compressa / Raccords rapides / Raccords et embouts / Trykluft koblinger og nipler / Snabbkopplingar och nipple / أداة تقرن / مقرنة /カプラー / カプラ / ハイカプラ / 空气用快速接头/相容接頭

Hose Safety Push-Button Socket

PART NO. SIZE
S20P-20SHA  1/4" NPT
S20P-30SHA  3/8" NPT


FEATURES:

1. Compatible with other manufacturer's ARO / Industrial Interchange

2. Yellow zinc dichromate-plated steel

3. Convenient and safe connection design

    Connect and disconnect pneumatic tools within one single press

4. Certificate of RoHS compliance

5. Life testing of 100,000 times

APPLICATION:

1. Pneumatic tools

2. Air piping

3. Air pressure equipment

SPECIFICATION:

 Material Steel
 Thread NPT
 Working Pressure 218PSI (15Bar / 1.5Mpa)
 Maximum Pressure 290PSI (20Bar / 2Mpa)
 Temp Range -20~+80°c
 Size 1/4"(20 TYPE) / 3/8"(30 TYPE)

* Meet The International Norms : ANSI / ASME B1.20.1 / DIN2999
