F.R.L. Air Control Unit+DIGITAL PRESSURE SWITCH

Model : FR592-N/P / FR593-N/P / FR594-N/P

Q'ty :

Description

Air Filter / Regulator

(F.R.L. Air Control Unit, Regular type)

調壓過濾器

Air Filter/Regulator/Lubricator Modular (F.R.L. air control unit) / Air Combination / Air Source Treatment / Modular FRL Units / Air Preparation / Air Preparation Unit / Filter Regulator Lubricator Combinations / FRL Combination Units / Filter, Regulator, Lubricator Combinations / FRL Filtro regulador lubricador / Filtro FRL regulador lubrificador / Druckluft Aufbereitung / Filtro regolatore lubrificatore / Фильтр-влагоотделитель / Регулятор давления / Лубрикатор / Filtre régulateur lubrificateur / filtre, regulatorer, smøreapparater / Filter, regulatorer, smörjare / フィルタレギュレータ+ルブリケータ / FRLユニット / モジュラタイプF.R.L.コンビネーション / SARTLANDIRICI / ثلاث نقاط الجمع / 空氣調理組 / 三點過濾器

SPECIFICATION :

Part No.		C592	C593	C594
Description		FRL592	FRL593	FRL594
Medium		Air
Port Size (PT, NPT)		1/4”	3/8”	1/2”
Filter Element		5μ
Proof Input Pressure	Psi	215
	Mpa	1.5
Proof Output Pressure	Psi	160
	Mpa	1.1
Max Flow (L/min)		2200	3000	3100
Operation Temperature Range		5℃ ~ 60℃

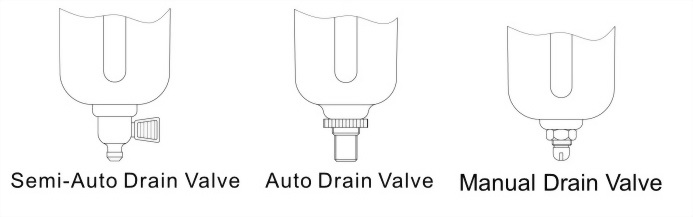

Drain Capacity		55 ml
Oil Capacity		80 ml
Minimum Dripping Flow Rate (L/min(ANR))*		1/4":30 / 3/8":40 / 1/2":50
Recommendable Lubricants		ISO VG-32
More Options
Air Filter		F592	F593	F594
Regulator		R592	R593	R594
Air Filter + Regulator		FR592	FR593	FR594
Lubricator		L592	L593	L594
Meet the international norms		JIS B 8371 / JIS B 8372 / JIS B 8378

* The flow rate is 5 drops or greater/min under the following conditions : Inlet pressure of 0.5 MPa; Class 1 turbine oil (ISO VG32); Temperature at 20°C; Oil adjustment valve fully open.

* For a circuit that repeatedly turns ON and OFF on the outlet side, make the adjustment so that the average air consumption per minute becomes the minimum dripping flow rate or more.

* Lubrication cannot be properly performed if the operating flow rate is too low. Select an appropriately size lubricator by referring to the minimum dripping flow rate provided in the catalog.

FEATURES :

1. Steel guards offer better production.

2. Safe Lockable buckles for firm installation.

3. Current Consumption : 40mA or less

4. Kpa / Mpa / PSI / Bar – 4 kinds of measurement range

5. Setting is possible while checking the measured value.
