QAL Mini Type Cylinder
Model :
QAL
THB-CYLINDER

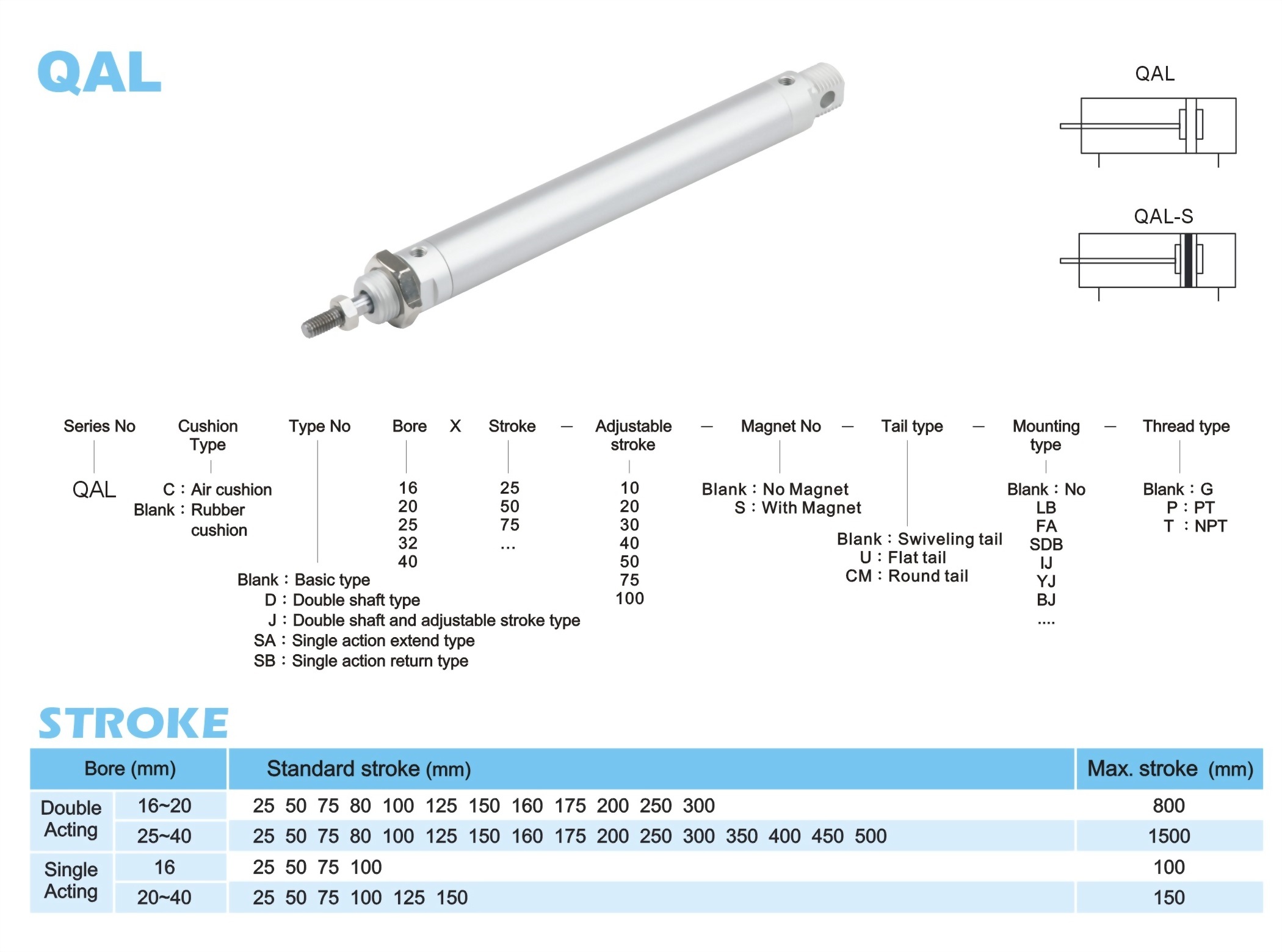

QAL Series Mini Type Cylinder
SPECIFICATION
| Bore Size (mm) | 16 | 20 | 25 | 32 | 40 | |
| Acting type | Double Acting / Single Acting | |||||
| Working medium | Clean Air (40μm filteration) | |||||
| Working pressure | PSI | 14.5~100 29~100 | 14.5~145 29~145 | |||
| Bar | 1~7 2~7 | 1~10 2~10 | ||||
| Mpa | 0.1~0.7 0.2~0.7 | 0.1~1.0 0.2~1.0 | ||||
| (Double Acting ) (Single Acting) | (Double Acting ) (Single Acting) | |||||
| Guaranteed pressue | 215PSI / 15Bar / 1.5Mpa | |||||
| Working temperature | -20~80℃ / -5~176℉ (No freezing) | |||||
| Speed range (mm/s) | 50~800 | |||||
| Cushion type | Fixed cushion / Air cushion | |||||
| Barrel material | Aluminum alloy | |||||
| Mounting type | LB FA SDB | |||||
| Port size | M5 x 0.8 | G1/8* | G1/4* | |||

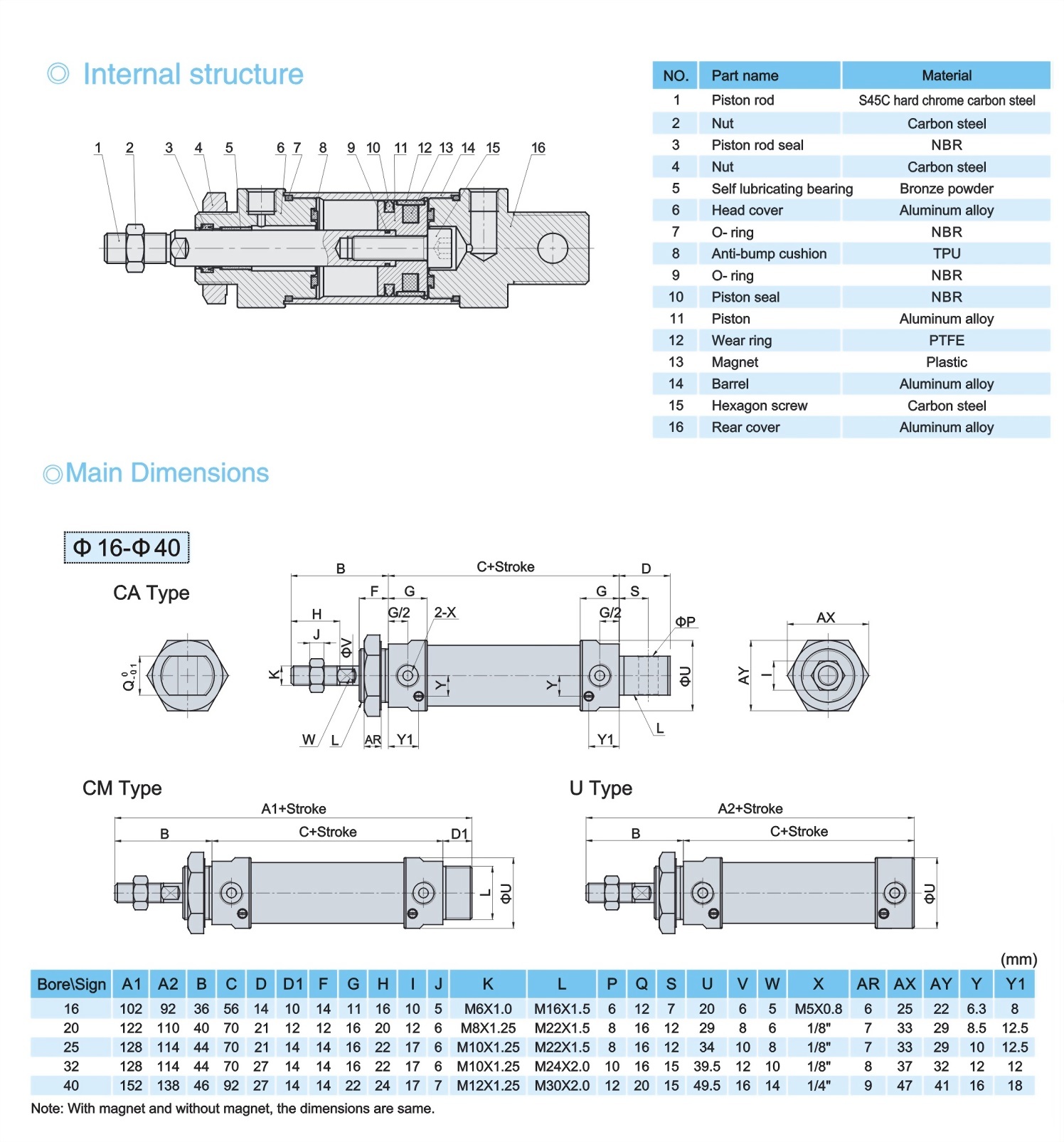

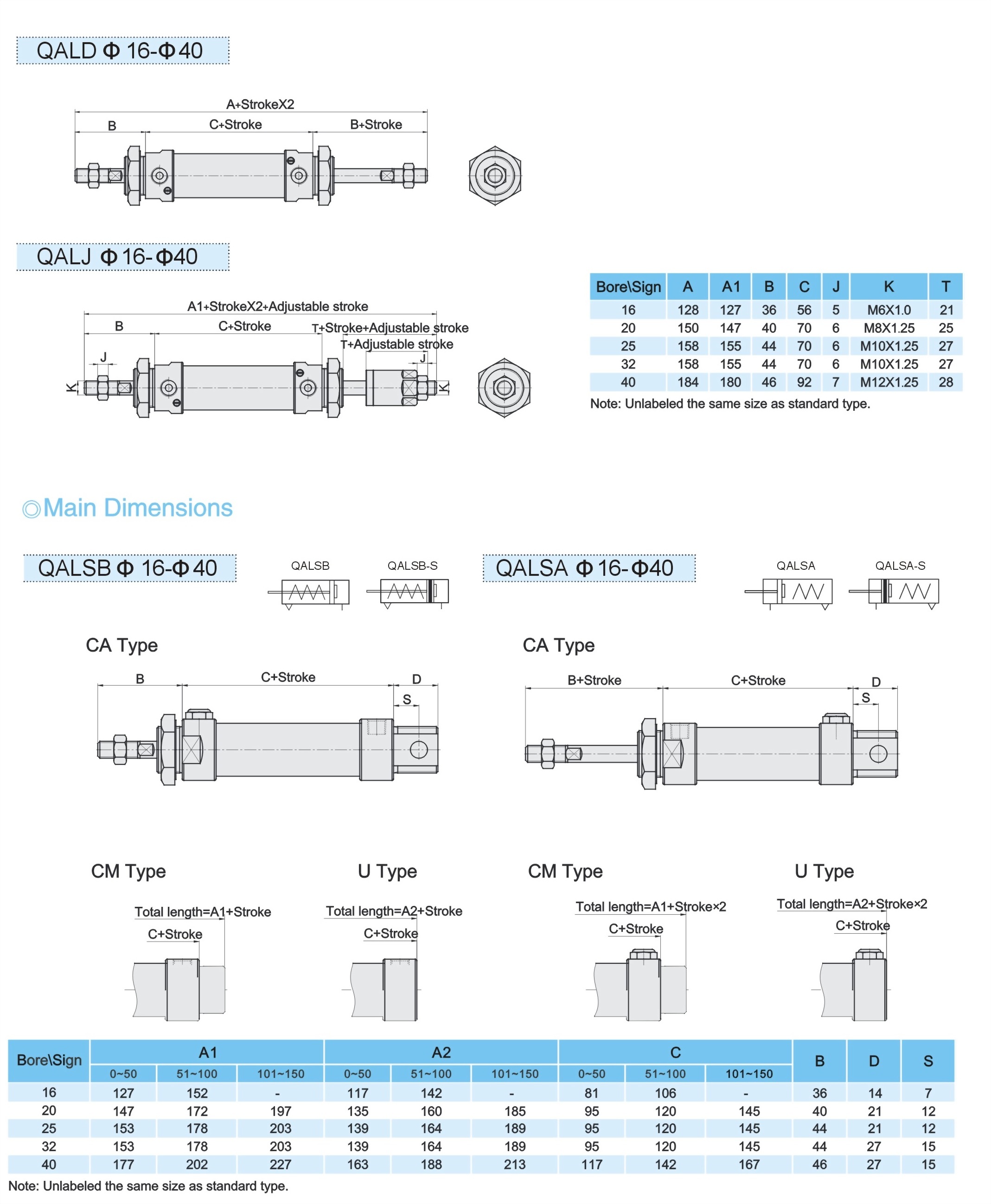

* NPT、PT port size is optional.
