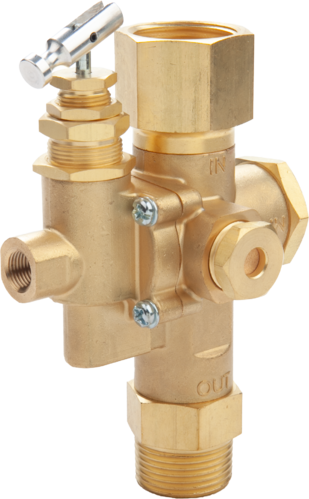

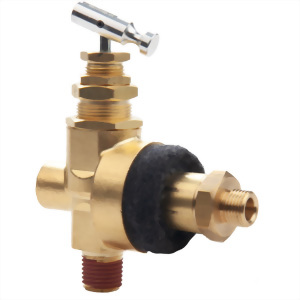

Piloted Unloader Valve
Piloted Unloader Valve
Piloted Unloader Valve / Pilot Operated Unloader Valve / Pilot Unloader Valve / Unloader Valve / Pilotgesteuertes Entlastungsventil / Soupape de décharge pilotée / Válvula descargadora pilotada / Válvula de descarga pilotada / Valvola di scarico pilotata / Pilotstyrd avlastningsventil / Pilotstyrt avlastningsventil / Пилотный разгрузочный клапан / Пилотно управляемый разгрузочный клапан / صمام تفريغ يعمل بالتحكم التجريبي / صمام تفريغ بطيار / パイロットアンローダーバルブ / 先導式制壓閥 /先導式卸載閥 / 先導式卸載閥 / 先導式釋荷閥
SPECIFICATION:
|
PART NO. |
VE20 |
VE21 |
VE22 |
VE23 |
|
Material |
BRASS |
|||
|
Unload Set Pressure Range |
2.75~17.2BAR/0.275~1.72MPa/40~250 PSI |
|||
|
Set Pressure Differential Range |
0.69~3.45BAR/0.069~0.345MPa/ 10~50 PSI |
|||
|
Operating Temperature Range |
-50°C~200°C/-58°F~392°F (Non frozen) |
|||
|
Max Flow Capacity |
20 SCFM (560L/min)@100PS |
|||
|
Unloader Connection Sizes |
7/16-24 UNS-2A |
1/4"-18 NPT |
9/16-24 UNF-2A |
1/4-19 PT |
|
Male |
Female |
Male |
Female |
|
FEATURES:
Piloted unloader valves combine a pilot valve and an unloader valve to run an air compressor continuously. While this type of valve is most commonly used on gas-powered air compressors, it can also be used on electric models. While the air compressor is running, the pilot remains closed until the pressure reaches the unload setting. When that happens, the pilot opens and pressurizes the unloader valve, causing the unloader valve to open and excess air from the compressor to vent to atmosphere. As the compressed air is used and the pressure drops to the load setting, the pilot closes and depressurizes the unloader valve. The unloader valve then closes and the pressure begins to build again and repeats the cycle.
