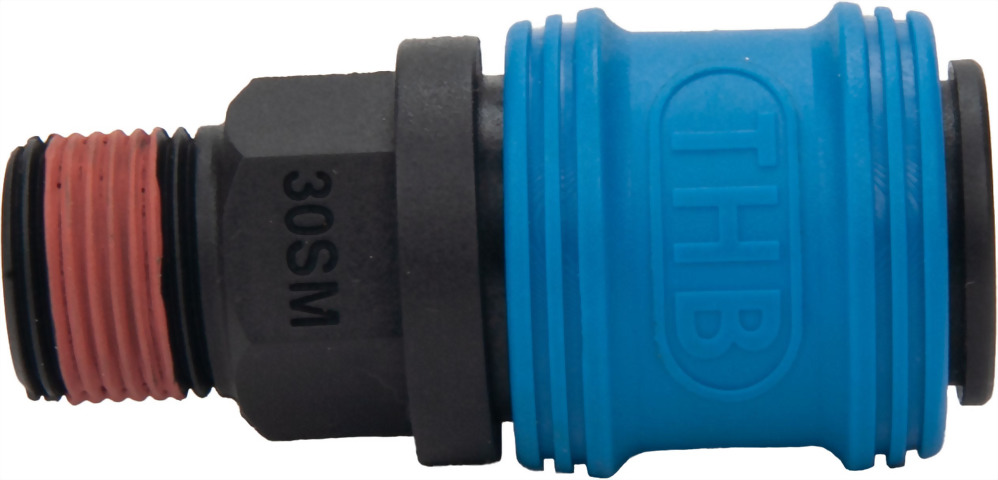

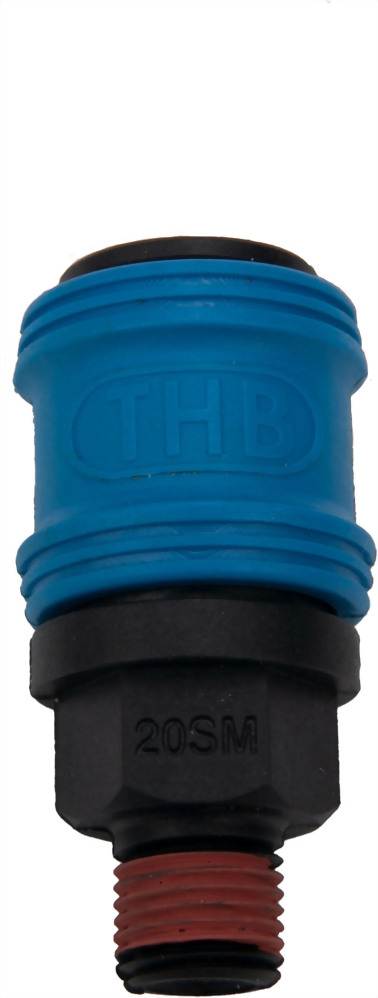

European Type - Universal 4 In 1 Nylon - Male Thread
Air Quick Coupler
European Type - Universal 4 In 1
High Flow Universal - Male Thread
Air Quick Coupler / Quick Disconnect Coupling / Quick Disconnector / Quick Connect / Quick Release Coupler (QRC) / Air Quick Coupling / Air Connectors & fitting / Quick coupling / Pneumatic couplings / Cople Rapido / Acople Rapido / Cngate rápido / Engate rápido para ar comprimido / Druckluftkupplungen / Schnellkupplungen / Stecknippel / Stecktüllen / Schnellverschluss-Kupplungen / Фитинг Муфта / Фитинг Штуцер / Connettore aria ad attacco rapido / Raccordi per aria compressa / Raccords rapides / Raccords et embouts / Trykluft koblinger og nipler / Snabbkopplingar och nipple / أداة تقرن / مقرنة /カプラー / カプラ / ハイカプラ / 空气用快速接头 / 相容接頭
|
Part No. |
Size |
|
S3A-20SMA |
1/4" |
|
S3A-30SMA |
3/8" |
|
S3A-40SMA |
1/2" |
SPECIFICATION:
|
Material |
Nylon (PA6+30%GF) |
|
Thread |
Male: PT / Female: G |
|
Working Pressure |
150PSI / 10Bar / 1Mpa |
|
Max. Pressure |
218PSI / 15Bar / 1.5Mpa |
|
Temperature Range |
-5°C ~ +60°C |
|
Flow Rate |
10bar : 2,900 l/m ; 102.4 cfm |
|
Compatible Fitting |
Euro(Rectus) / Aro210(Orion) / Industrial / Italian |
|
Meet the International Norms |
ISO 288-1 / ISO 7-1 |
FEATURES:
1. A built-in "lock mechanism" locks the sleeve upon connection thus prevents
accidental disconnection.
2. Just push plug into socket for simple connection.
3. The weight is half of steel.
4. Avoid static electricity.
5. Prevent the scrape on the car surface, floor and furniture.
6. The steel ring inside of sleeve is able to prolong the life.
7. Interchangeable with 4 types of plugs as shown below chart.
APPLICATION:
1. Pneumatic tools
2. Air piping
3. Air pressure equipment
